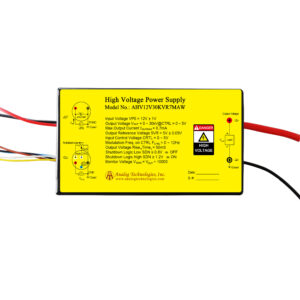

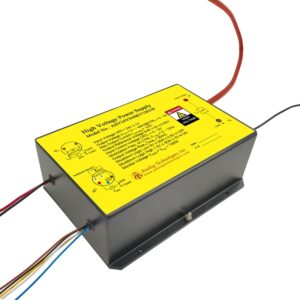

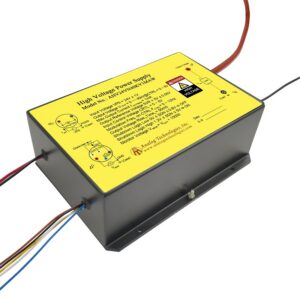

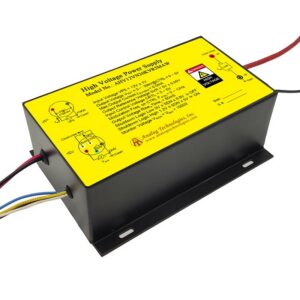

12V Input High Voltage Power Supply

Analog Technologies’ 12V input series high voltage power modules are DC-DC converters that convert a low voltage input of 12 Volts into high voltage outputs, ranging up to several kilo Volts, with maximum currents typically up to 1mA. These power modules feature full electronic control of output voltage and an electronic shut down mechanism. The 6-sided aluminum housing is designed to minimize EMI and maximize heat sinking, ensuring efficient performance in demanding applications.

Thanks to the high-frequency switching output stage, these modules achieve high efficiency, making them ideal high voltage power supplies. They offer full electronic control, ensuring no interference with other electronics, high tolerance to electromagnetic interference (EMI), and remain cool even under high loads.

These high voltage power supplies are widely used in various industries, including agriculture, national defense, scientific research, and are commonly applied in X-ray machines, lasers, spectral analysis, and many other applications. Specific uses include ion beam deposition, ion beam assisted deposition, electron beam evaporation, electron beam welding, ion sources, DC reactive magnetron sputtering, glass/fabric coating, glow discharge, microwave treatment, high voltage capacitance testing, CRT monitor testing, high voltage cable fault testing (PD testing), TWT testing, and H-POT testing.
