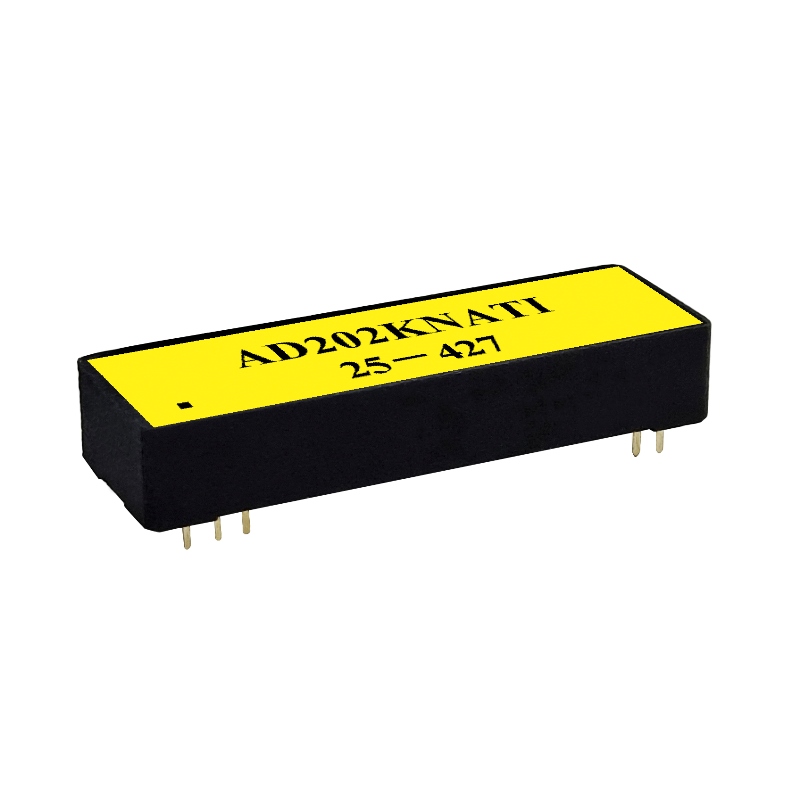

AD202KNATI

$49.00

The AD202KNATI is a high voltage isolation amplifier designed for multiple applications where input signals are measured, processed, or transmitted without a galvanic connection. These isolation amplifiers in DIP package offer a signal and power isolation function. With internal transformer-coupling, the AD202KNATI provides total galvanic isolation between the input and output stages of the isolation amplifier. These amplifiers eliminate the need for an external DC-DC converter, which allows the designer to minimize the necessary circuit overhead, thus reducing the overall design and component costs.
The AD202KNATI is powered directly from a 15V DC power supply, featuring small size, high accuracy, low power, wide bandwidth, excellent performance, flexible input, isolated power, etc.

DATASHEET

7 in stock (can be backordered)

1~9$49.00 each

10~49$47.00 each

50~999$44.00 each

Additional information

Weight 0.3 lbs
