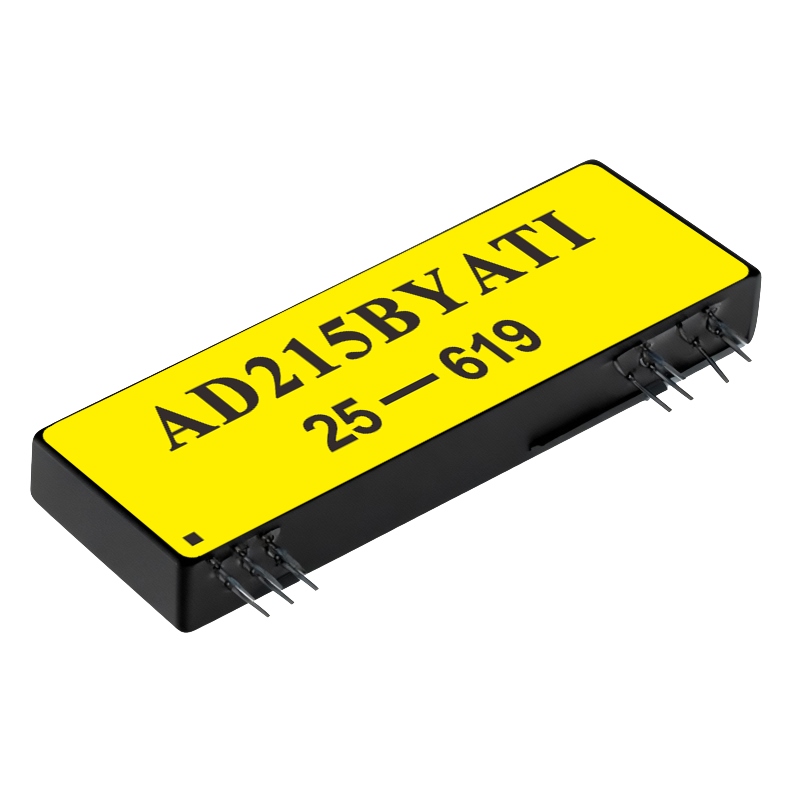

AD215BYATI
$70.00
AD215BYATI is a high-speed, low-distortion isolation amplifier designed for precise isolation and amplification of wide-bandwidth analog signals in high common-mode voltage environments.
Its advanced modulation/demodulation architecture and transformer-based isolation technology deliver excellent wideband dynamic performance while maintaining outstanding DC accuracy and linearity.
Key Features:
- High Isolation Rating: Up to 1500Vrms (BYATI version)
- Wide Bandwidth & Fast Response:
300kHz full-power bandwidth, ~1µs rise time, ~4µs settling time - Excellent Accuracy: Low nonlinearity of ±0.005% (typical, B Grade) and low harmonic distortion of -80dB @ 1kHz
- Signal Range:
±10V input and buffered ±10V output with offset and zero adjustment capability - Flexible Gain Configuration: User-selectable gain from 1V/V to 10V/V
- Integrated Isolated Power Supplies: Provides ±15V isolated outputs (±10mA) for external circuitry, reducing system complexity
- Industrial Temperature Range: Guaranteed performance from -40°C to +85°C
Available on backorder
| 1~9 | $70.00 each |
| 10~49 | $68.00 each |
| 50~999 | $66.00 each |
Additional information
| Weight | 0.3 lbs |
|---|
