AHV12VN1KVR5MAP

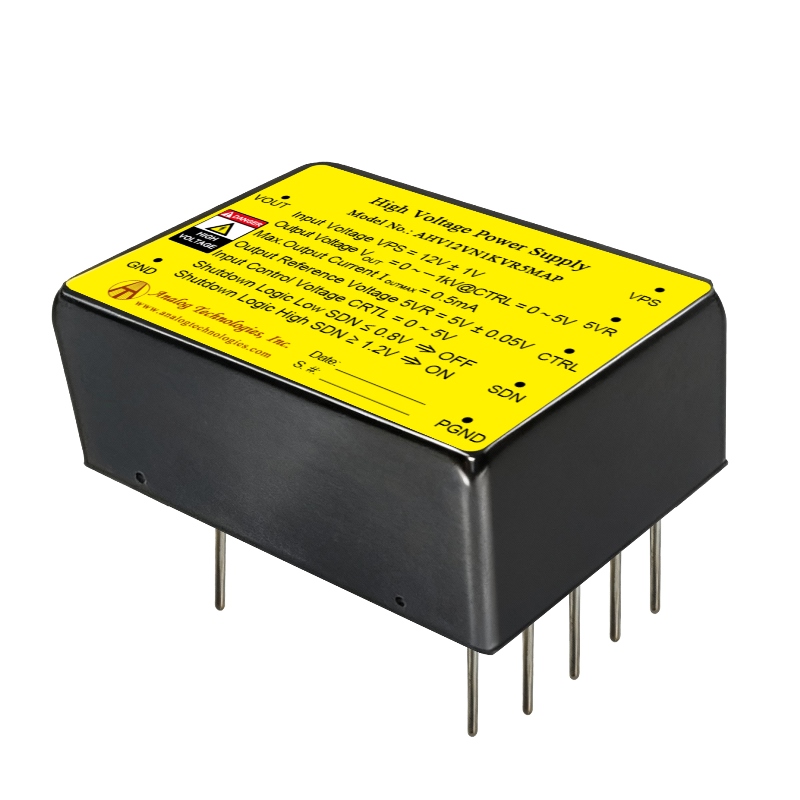

AHV12VN1KVR5MAP is a compact and reliable 12W isolated DC-DC power module designed to convert a 12V DC input into a stable negative high-voltage output from -1kV to 0V with up to 0.5mA output current. Built for high-voltage power conversion applications, this module features 1000VDC isolation, 85% typical efficiency, low output ripple, and overvoltage and short-circuit protection, making it an excellent choice for scientific, industrial, and test equipment requiring dependable high-voltage DC power.

This -1kV isolated DC-DC converter is housed in a full aluminum enclosure for complete shielding and improved durability, while the industry-standard DIP package supports convenient system integration. With a wide -40°C to +85°C operating temperature range, the module is suitable for demanding environments where stable performance, compact size, and long service life are essential. For engineers searching for a 12W DC-DC power module, -1kV DC power supply module, or isolated negative high-voltage converter, the AHV12VN1KVR5MAP offers a practical and efficient solution.

Key Features:

• 12W Isolated DC-DC Power Module: Designed for efficient conversion from 12V DC input to -1kV to 0V output in compact systems.
• Stable Negative Output: Delivers a regulated -1kV to 0V DC output with up to 0.5mA maximum output current.
• High Efficiency: Provides 85% typical efficiency at VIN = 12V, VOUT = -1kV, and IOUT = 0.5mA.
• Low Ripple Performance: Output ripple voltage is specified at ±1% with 20MHz bandwidth.
• 1000VDC Isolation: Input-to-output isolation enhances safety and system reliability.
• Built-In Protection: Features overvoltage protection and short-circuit protection for improved robustness in operation.
• Compact Shielded Design: Full aluminum housing provides complete shielding and mechanical protection.
• Wide Operating Temperature Range: Operates from -40°C to +85°C for industrial and laboratory applications.
• Easy Integration: Comes in an industry-standard DIP package for convenient installation.

Typical Applications: Sustaining ion pumps, spectral analysis, electrophoresis, particle accelerators, capillary electrophoresis, piezo devices, photomultiplier tubes, avalanche photodiodes, and other systems requiring a stable compact -1kV negative high voltage DC power module.

DATASHEET
