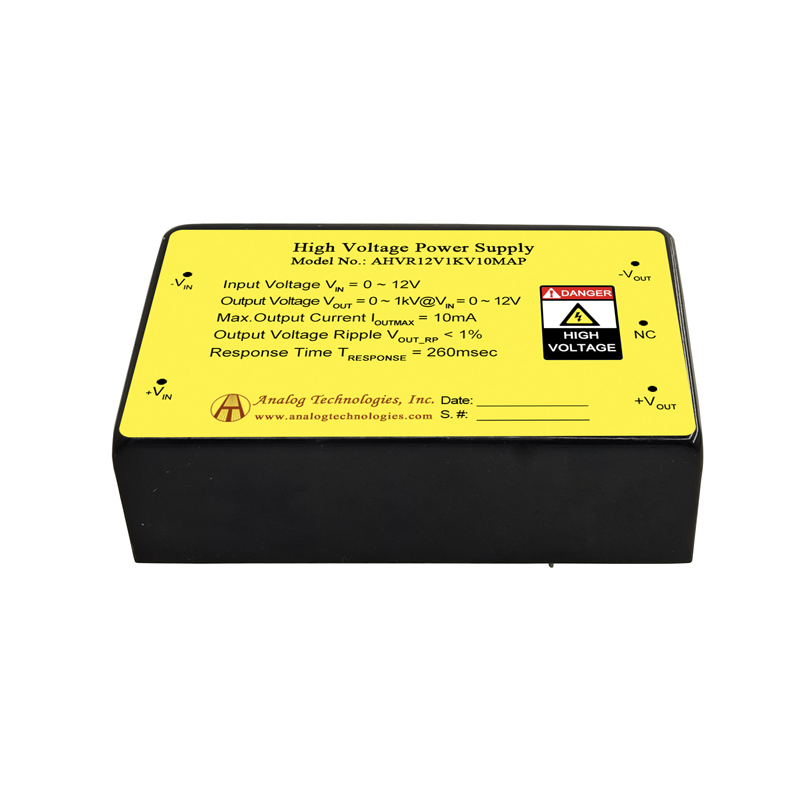

AHVR12V1KV10MAP

The AHVR12V1KV10MAP is an I/O proportional DC-DC high voltage power supply designed to
convert a 12V DC input into a stable, continuously adjustable high DC voltage output using proportional
control. With advanced switching and regulation technology, this module delivers low ripple, strong stability,
and reliable performance in a compact design, making it well suited for precision instrumentation, embedded
systems, OEM integration, and automated test equipment that require accurate and adjustable high voltage
control from a DC source.

This proportional DC-DC high voltage power supply incorporates built-in protection features such as
short-circuit and overcurrent safeguards to enhance safety and protect connected components. Its rugged
construction and optimized electromagnetic design minimize interference and support long-term operation in
demanding environments. The AHVR12V1KV10MAP is suitable for use in photomultiplier tube (PMT) biasing,
detector systems, sensor networks, ion sources, electrospray applications, analytical instrumentation,
research platforms, and other scientific or industrial applications where precise and adjustable high
voltage output is required.

• Model: AHVR12V1KV10MAP
• Type: I/O Proportional DC-DC High Voltage Power Supply
• Input Voltage: 12V DC
• Output Voltage Range: Adjustable high DC voltage up to 1kV
• Output Current Range: 0 ~ 10 mA (V_IN = 12V)
• Proportional Control: I/O proportional voltage regulation
• Protection Features: Short-circuit and overcurrent protection
• Design: Compact rugged enclosure with low EMI
• Applications: PMT biasing, detectors, sensors, electrospray systems, analytical and research systems
