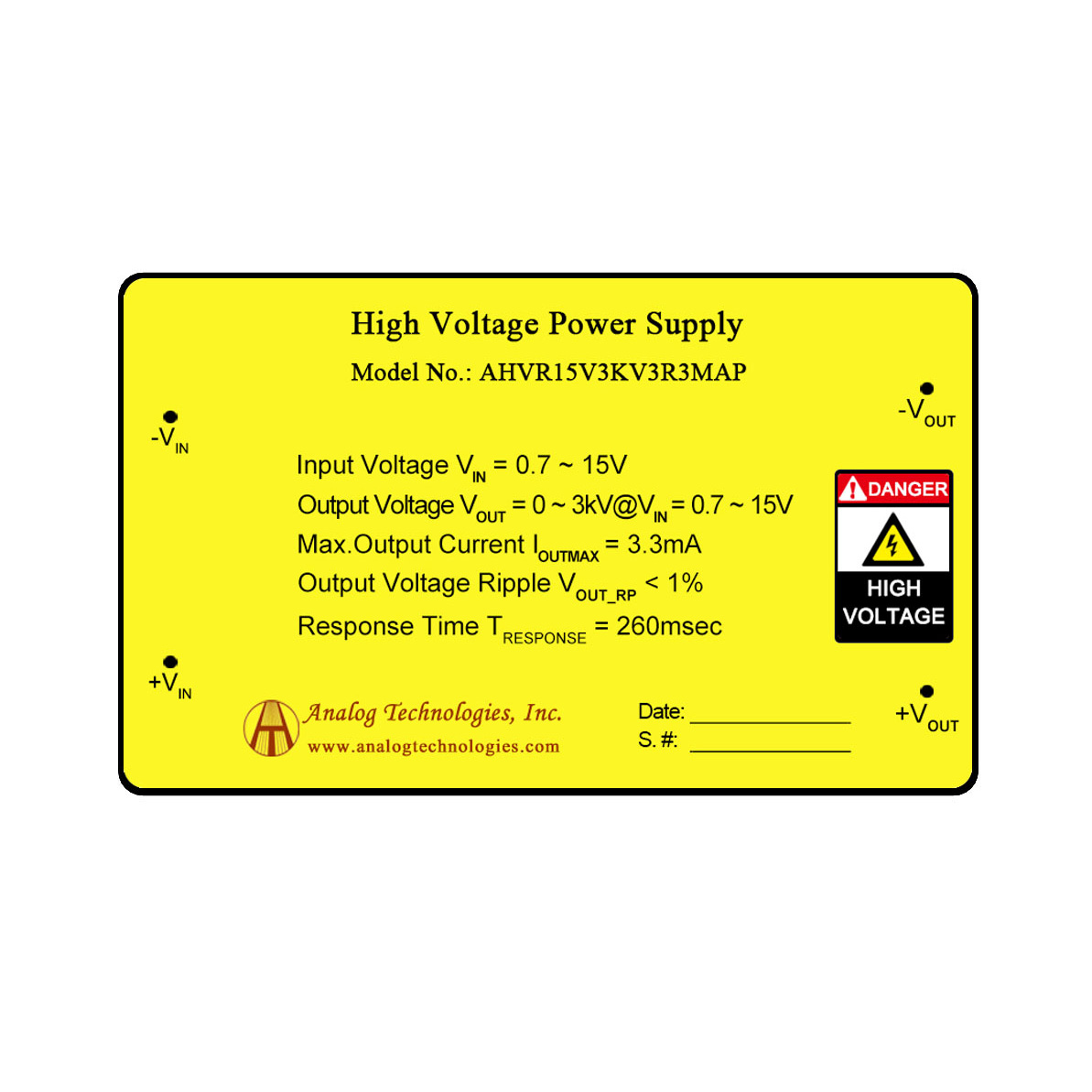

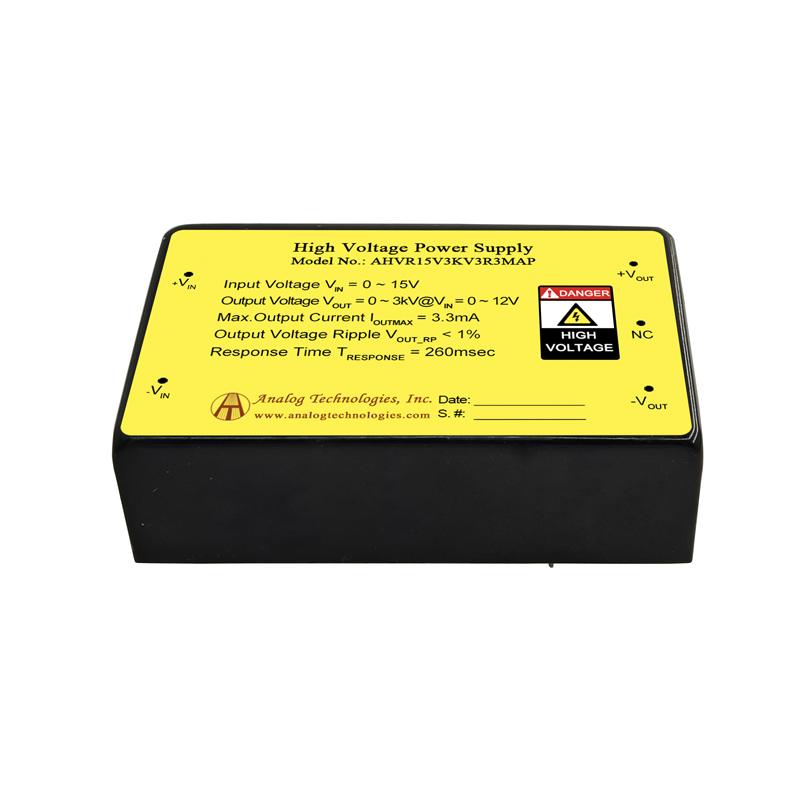

AHVR15V3KV3R3MAP

The AHVR15V3KV3R3MAP is an I/O proportional DC-DC high voltage power supply designed to convert
a 15V DC input into a stable, continuously adjustable high DC voltage output using proportional control. With
advanced switching and regulation technology, this high voltage module delivers low ripple, strong stability,
and dependable performance in a compact design, making it ideal for precision instrumentation, embedded control
systems, OEM integration, and automated test equipment that require accurate and adjustable high voltage control
from a DC source.

This proportional DC-DC high voltage power supply includes built-in protection features such as short-circuit and
overcurrent safeguards to enhance operational safety and protect connected components. Its robust construction
and optimized electromagnetic design minimize interference and support long-term operation in demanding
environments. The AHVR15V3KV3R3MAP is suitable for use in photomultiplier tube (PMT) biasing, detector systems,
sensor networks, ion sources, electrospray applications, analytical instrumentation, research platforms, and
other industrial or scientific applications where precise and adjustable high voltage output is required.

• Model: AHVR15V3KV3R3MAP
• Type: I/O Proportional DC-DC High Voltage Power Supply
• Input Voltage: 15V DC
• Output Voltage Range: Adjustable high DC voltage up to 3kV
• Output Current Range: 0 ~ 3.3 mA (V_IN = 15V)
• Proportional Control: I/O proportional voltage regulation
• Protection Features: Short-circuit and overcurrent protection
• Design: Compact rugged enclosure with low EMI
• Applications: PMT biasing, detectors, sensors, electrospray systems, analytical and research systems

DATASHEET
