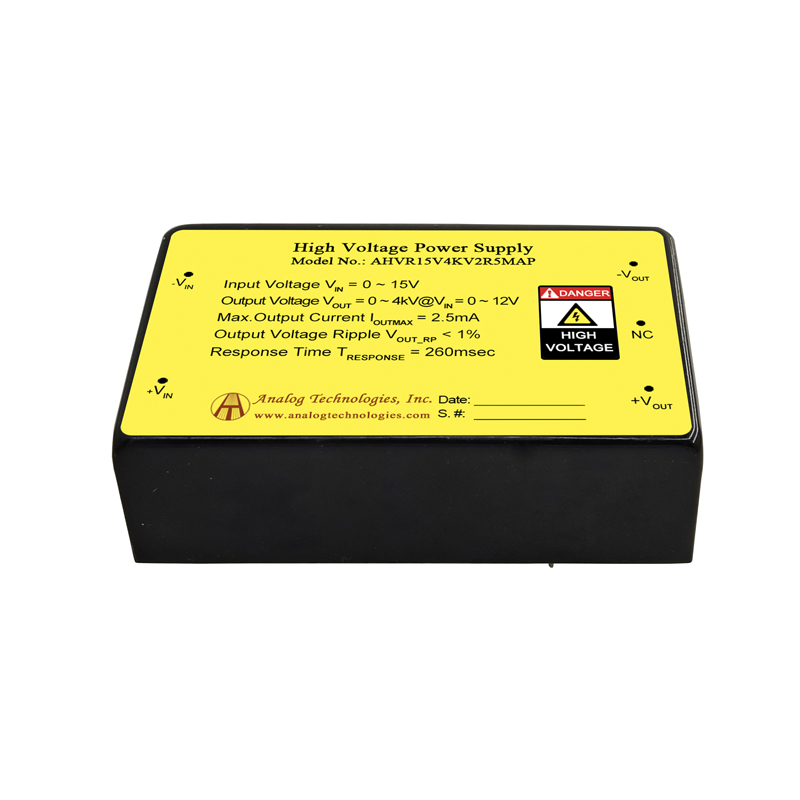

This high stability high voltage power supply can be used for capacitor charging, photomultiplier tube, optical measurement, mass spectrometry, electrophoresis, medical equipment, isolation testing, etc. AHVR15V4KV2R5MAP comes with a quasi-sine wave oscillator, a fully enclosed transformer, an input and output filter, and a five-sided metal enclosure. These modules present low EMI/RFI, low noise, and low ripple. The input and output are galvanically isolated. Proportional to the input voltage, the output voltage has a typical turn-on voltage as low as 0.7V. It also comes with output short-circuit protection and a wide range of output voltage adjustments.


Available on backorder

1~9$149.00 each

10~49$139.00 each

50~99$129.00 each

>=100$119.00 each

Additional information

Weight 3 lbs
