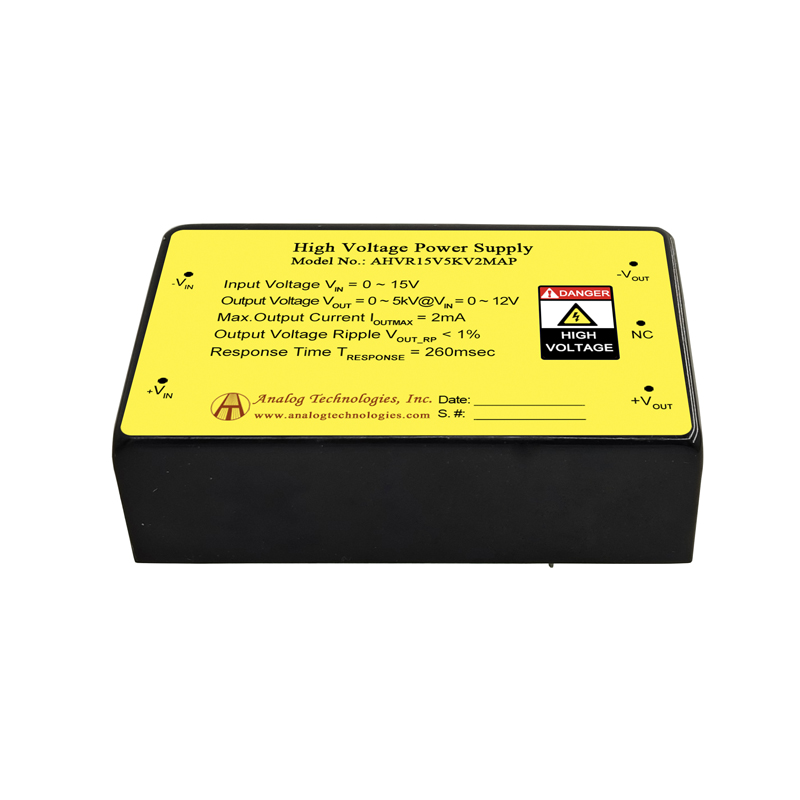

AHVR15V5KV2MAP

The AHVR15V5KV2MAP is an I/O proportional DC-DC high voltage power supply designed to
convert a 15V DC input into a stable, continuously adjustable high DC voltage output using proportional
control. Utilizing advanced switching and regulation technology, this high voltage module delivers low
ripple, strong stability, and reliable performance in a compact form factor, making it ideal for precision
instrumentation, embedded systems, OEM integration, and automated test equipment that require accurate and
adjustable high voltage control from a DC source.

This proportional DC-DC high voltage power supply includes built-in protection features such as
short-circuit and overcurrent safeguards to enhance operational safety and protect connected components.
Its rugged construction and optimized electromagnetic design minimize interference and support long-term
operation in demanding environments. The AHVR15V5KV2MAP is suitable for use in photomultiplier tube (PMT)
biasing, detector systems, sensor networks, ion sources, electrospray applications, analytical instrumentation,
research platforms, and other scientific or industrial applications where precise and adjustable high voltage
output is required.

• Model: AHVR15V5KV2MAP
• Type: I/O Proportional DC-DC High Voltage Power Supply
• Input Voltage: 15V DC
• Output Voltage Range: Adjustable high DC voltage up to 5kV
• Output Current Range: 0 ~ 2 mA (V_IN = 15V)
• Proportional Control: I/O proportional voltage regulation
• Protection Features: Short-circuit and overcurrent protection
• Design: Compact rugged enclosure with low EMI
• Applications: PMT biasing, detectors, sensors, electrospray systems, analytical and research systems
