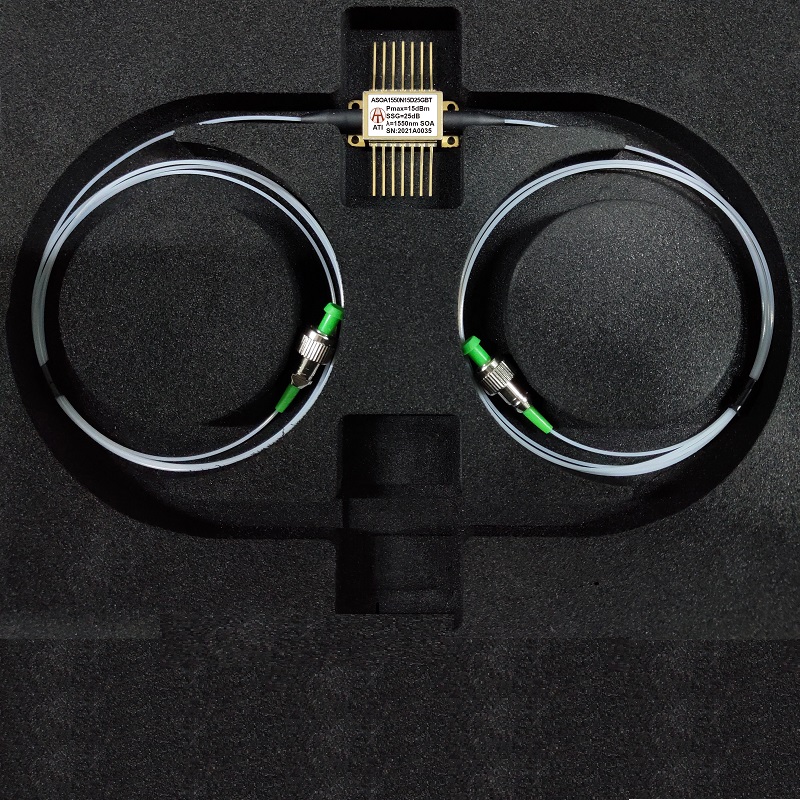

Semiconductor Optical Amplifier ASOA1550N15D25GBT
$1,399.00
Features:
⚫Wavelength Range: Operates at 1550nm, a widely used wavelength for optical communication and sensing applications. ⚫ High Gain: Small signal gain of 25dB with excellent power handling. ⚫ Low Noise: The device offers a low noise figure (7-9 dB), ensuring minimal signal degradation. ⚫ Polarization Insensitivity: Achieved with PDG (polarization dependent gain) <2.0dB, making it suitable for diverse signal environments. ⚫ Compact Butterfly Package: The device comes in a sealed, standard butterfly package that ensures high reliability and ease of integration into existing systems. ⚫ Temperature Range: Operates across a broad temperature range from −10°C to +70°C, suitable for ⚫ Customizable Options: Available for custom configurations, including special wavelengths and integration options.
Applications:
⚫The 1550nm Butterfly SOA is designed for a variety of optical applications: ⚫ Fiber Optic Sensing Systems: Used as a modulator or chopper in distributed fiber optic sensor systems, replacing acousto-optic modulators (AOMs). ⚫ Optical Communications: Amplifies optical signals in communication systems, replacing parts of EDFA systems for cost and space savings. ⚫ Lidar Systems: Used in high-power SOA arrays for enhancing transmission power and generating pulses in TOF and FMCW Lidar applications.
Available on backorder
| 1~9 | $1399.00 each |
| 10~49 | $1299.00 each |
| 50~99 | $1199.00 each |
| >=100 | $1099.00 each |
Additional information
| Weight | 1 lbs |
|---|
