CMOS Rail to Rail Operational Amplifier AT8605ARTZ


This AT8506ARTZ is wideband, low noise, low distortion dual operation amplifier, that offer rail to rail input/output and single supply operation down to 0.2V. They draw 1.6mA of quiescent supply current while featuring ultra-low distortion (0.0002% THD+N), as well as low input voltage noise density(15Nv/Hz) and low input current noise density(0.5Fa/hZ). These features make the devices an ideal choice for applications that require low distortion and/or low noise. These amplifiers have inputs and outputs which swing rail-to-rail and their input common mode voltage range includes ground. The maximum input offset of these amplifiers is less than 5mV.

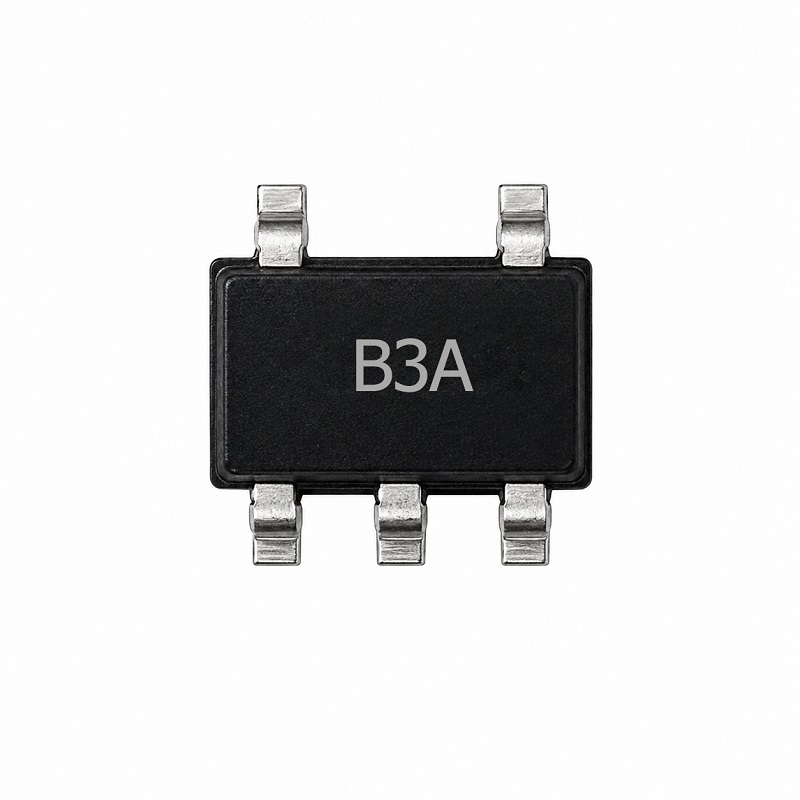

The AT8605ARTZ are unity gain stable with a gain bandwidth of 10MHz. The AT8605ARTZ is available in SOT23-5 packages. The extended temperature range of −40°C to +125°C over all supply voltages offers additional design flexibility.


Available on backorder

5~9$0.15 each

10~49$0.14 each

50~99$0.13 each

100~499$0.12 each

500~999$0.11 each

>=1000$0.10 each

Additional information

Weight 0.3 lbs
