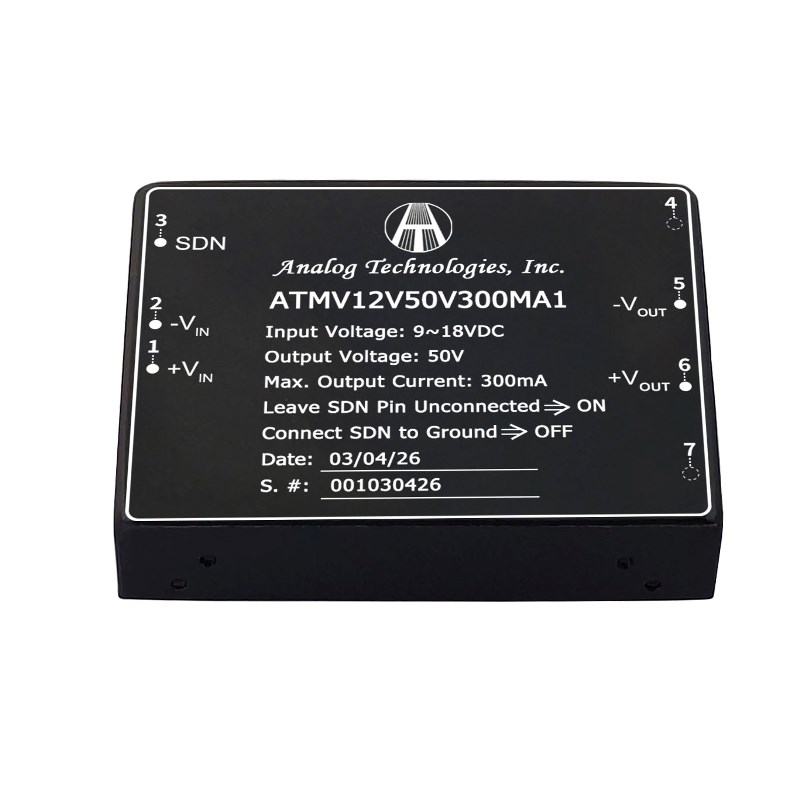

15W Isolated DC-DC Power Module ATMV12V50V300MA1

Features:

• Wide Input Power Voltage Range: 10V to 18V
• Output Voltage: 50V
• Max. Output Current: 300mA
• High Efficiency: 78% @VIN = 12V & VOUT =50V & IOUT = 300mA
• Output Ripple Voltage: ≤1% @20MHz
• Isolation Voltage: 1500VDC
• Output Short-Circuit Protection: Automatic Recovery

Full Aluminum Housing for Complete Shielding

Industry Standard DIP Package

• Operating Temperature Range: -40°C to +85°C

100 % Lead (Pb)-free and RoHS Compliant

Applications:

This power module, ATMV12V50V300MA1, is designed for achieving DC-DC conversion from low voltage to high voltage as a power supply source. It is widely used in scientific research and other fields including:

Sustaining Ion Pumps

Spectral Analysis

Electrophoresis

Particle Accelerator

Capillary Electrophoresis

Piezo Devices

Photo Multiplier Tubes

Avalanche Photo Diodes

DESCRIPTION This Power Module is a medium voltage, isolated DC-DC converter with 2:1 input voltage range. With a wide operating temperature range, built in short-circuit protection, providing this unit with high reliability and long life.
