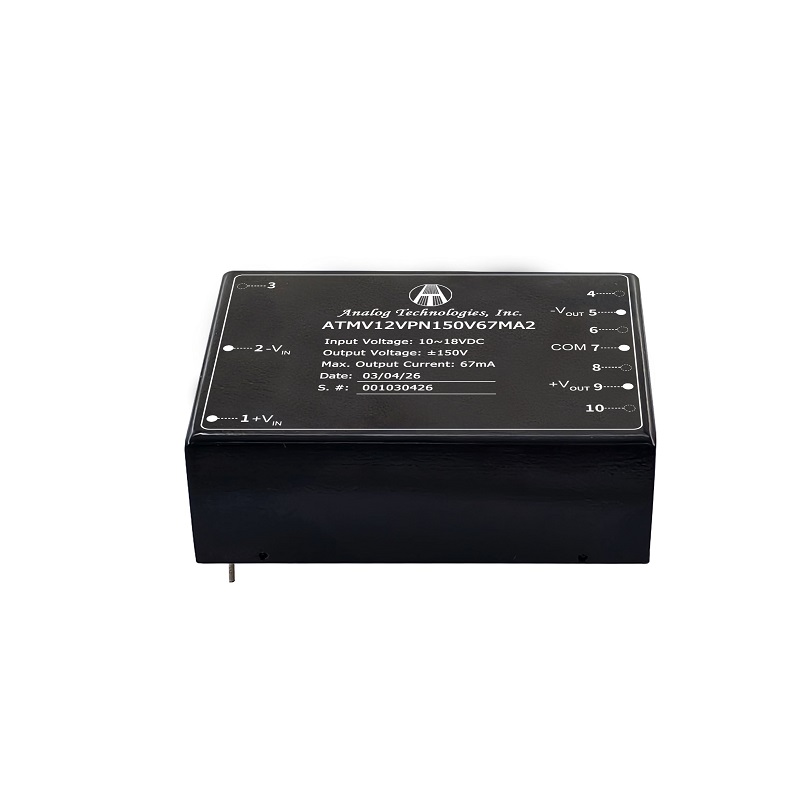

ATMV12VPN150V67MA2 – 20W Isolated DC-DC Power Module, 10V–18V Input, ±150V Dual Output, ±67mA, 1500VDC Isolation
$245.00
The ATMV12VPN150V67MA2 is a 20W isolated DC-DC power module that converts a 10V–18V DC input into a regulated ±150V dual output with up to ±67mA output current. It features 1500VDC input-to-output isolation, automatic-recovery short-circuit protection, ±1% output ripple, and a wide input voltage range, housed in a full aluminum, industry-standard DIP package for complete shielding. It is widely used in sustaining ion pumps, spectral analysis, electrophoresis, particle accelerators, capillary electrophoresis, piezo devices, photomultiplier tubes, and avalanche photodiodes.
- Input Voltage: 10V to 18V
- Output Voltage: ±150V (Dual Output)
- Max. Output Current: ±67mA
- Efficiency: 81% @ VIN=12V, VOUT=±150V, IOUT=±67mA
- Output Ripple: ±1% @20MHz
- Switching Frequency: 125 kHz
- Isolation Voltage: 1500VDC
- Operating Temperature: −40°C to +85°C
- Dimensions: 72.0 × 40.0 × 24.0 mm
- Weight: 120 g
- Package: Industry Standard DIP, Full Aluminum Housing, RoHS Compliant
Available on backorder
| 1~9 | $245.00 each |
| 10~49 | $240.00 each |
| 50~99 | $235.00 each |
| >=100 | $230.00 each |
Additional information
| Weight | 0.5 lbs |
|---|
