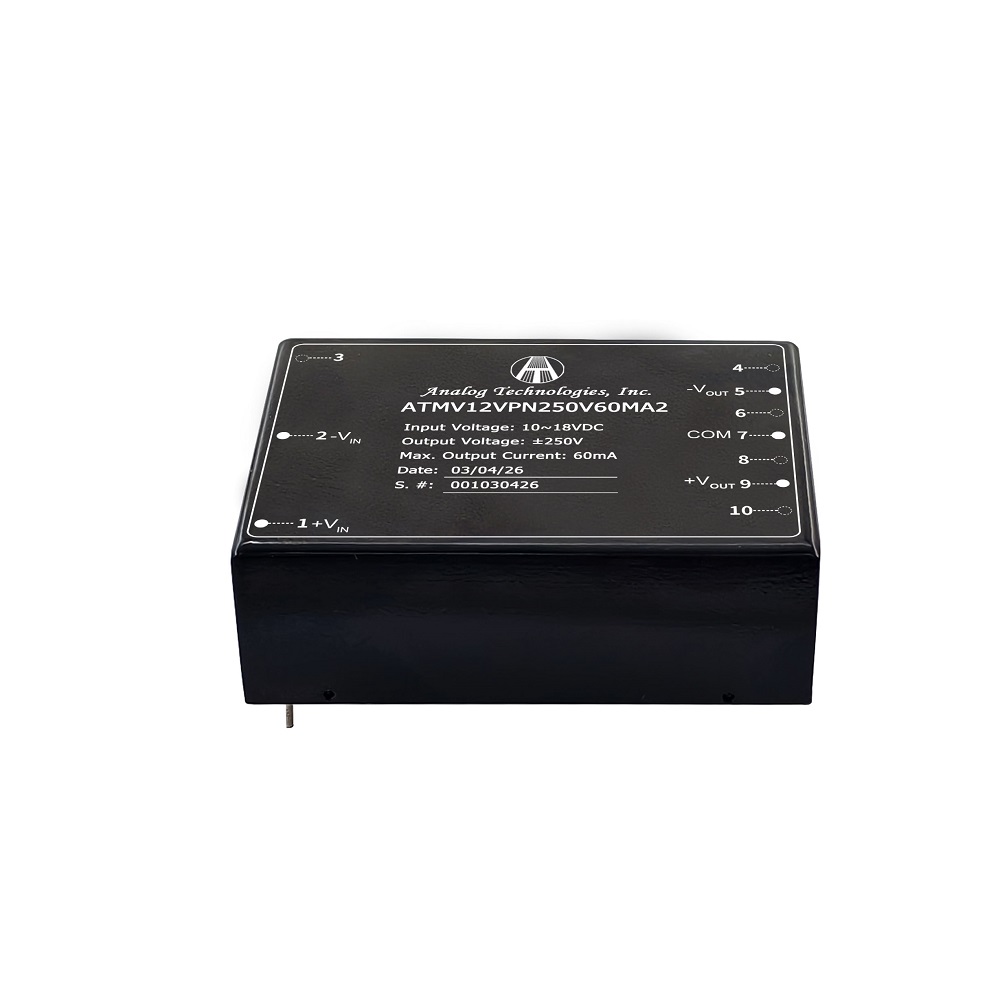

ATMV12VPN250V60MA2 30 W Isolated DC-DC Module, 10–18 V Input, Dual ±250 V, ±60 mA
$319.00
ATMV12VPN250V60MA2 is a 30 W isolated DC-DC power module that converts a 10 V to 18 V DC input into regulated dual ±250 V DC outputs for compact medium-voltage bias and drive applications, including APD bias, piezo devices, and electrostatic biasing.
Quick Specs
- Output Power: 30 W
- Input Voltage: 10 V to 18 V DC
- Output Voltage: Dual ±250 V DC
- Max. Output Current: ±60 mA
- Typical Efficiency: 82%
- Isolation Voltage: 1500 VDC
- Dimensions: 72 × 40 × 24 mm
Available on backorder
| 1~9 | $319.00 each |
| 10~49 | $314.00 each |
| 50~99 | $309.00 each |
| >=100 | $304.00 each |
Additional information
| Weight | 0.4 lbs |
|---|
