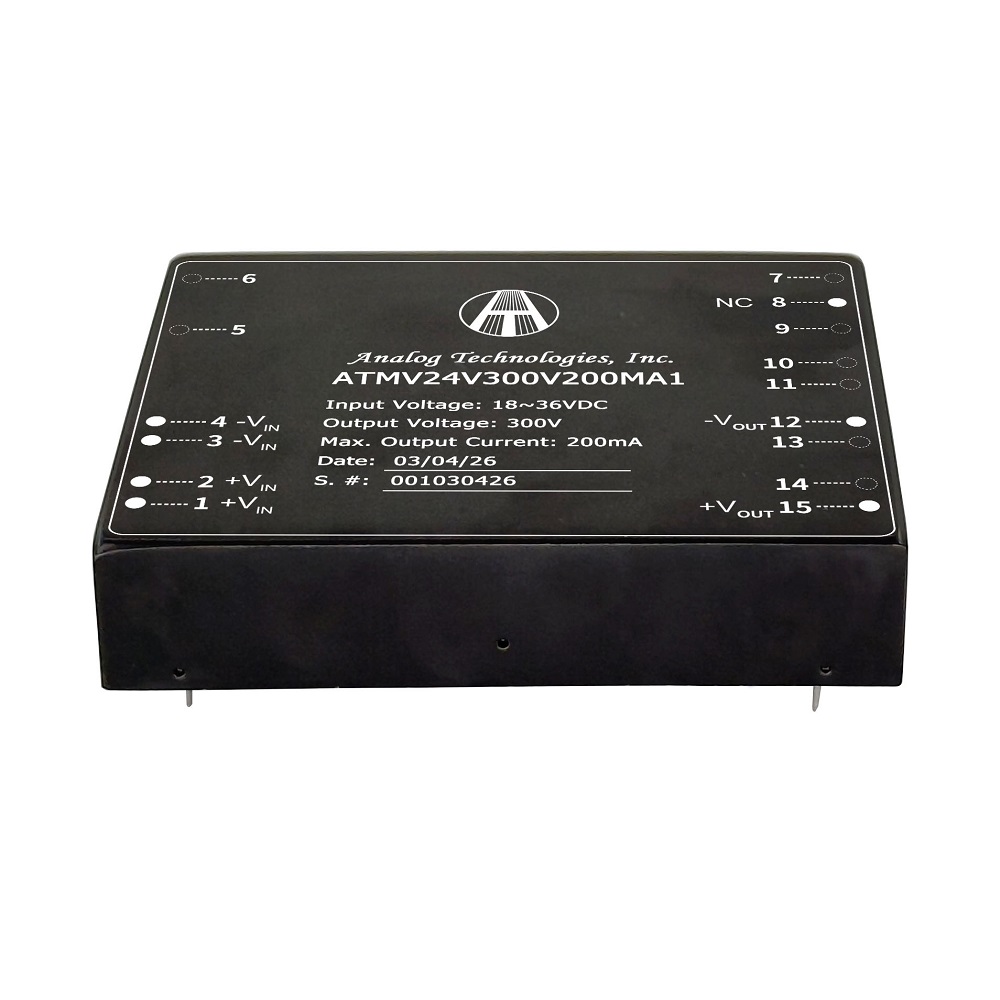

60W Isolated DC-DC Power Module ATMV24V300V200MA1

ATMV24V300V200MA1 is a compact and reliable 60W isolated DC-DC power module designed to convert a 20V to 36V DC input into a stable 300V output with up to 200mA output current. Built for medium-voltage power conversion applications, this module features 1500VDC isolation, 82% typical efficiency, low output ripple, and automatic short-circuit recovery, making it an excellent choice for scientific, industrial, and test equipment requiring dependable high-voltage DC power.

This 300V isolated DC-DC converter is housed in a full aluminum enclosure for complete shielding and improved durability, while the industry-standard DIP package supports convenient system integration. With a wide -40°C to +85°C operating temperature range, the module is suitable for demanding environments where stable performance, compact size, and long service life are essential. For engineers searching for a 60W DC-DC power module, 300V DC power supply module, or isolated medium-voltage converter, the ATMV24V300V200MA1 offers a practical and efficient solution.

Key Features:

• 60W Isolated DC-DC Power Module: Designed for efficient conversion from 20V to 36V input to 300V output in compact systems.
• Stable 300V Output: Delivers a regulated 300V DC output with up to 200mA maximum output current.
• High Efficiency: Provides 82% typical efficiency at VIN = 24V, VOUT = 300V, and IOUT = 200mA.
• Low Ripple Performance: Output ripple voltage is specified at ±1% with 20MHz bandwidth.
• 1500VDC Isolation: Input-to-output isolation enhances safety and system reliability.
• Built-In Protection: Features automatic recovery short-circuit protection for improved robustness in operation.
• Compact Shielded Design:
  Full aluminum housing provides complete shielding and mechanical protection.
• Wide Operating Temperature Range: Operates from -40°C to +85°C for industrial and laboratory applications.
• Easy Integration: Comes in an industry-standard DIP package for convenient installation.

Typical Applications: Sustaining ion pumps, spectral analysis, electrophoresis, particle accelerators, capillary electrophoresis, piezo devices, photomultiplier tubes, avalanche photodiodes, and other systems requiring a stable compact 300V high voltage DC power module.
