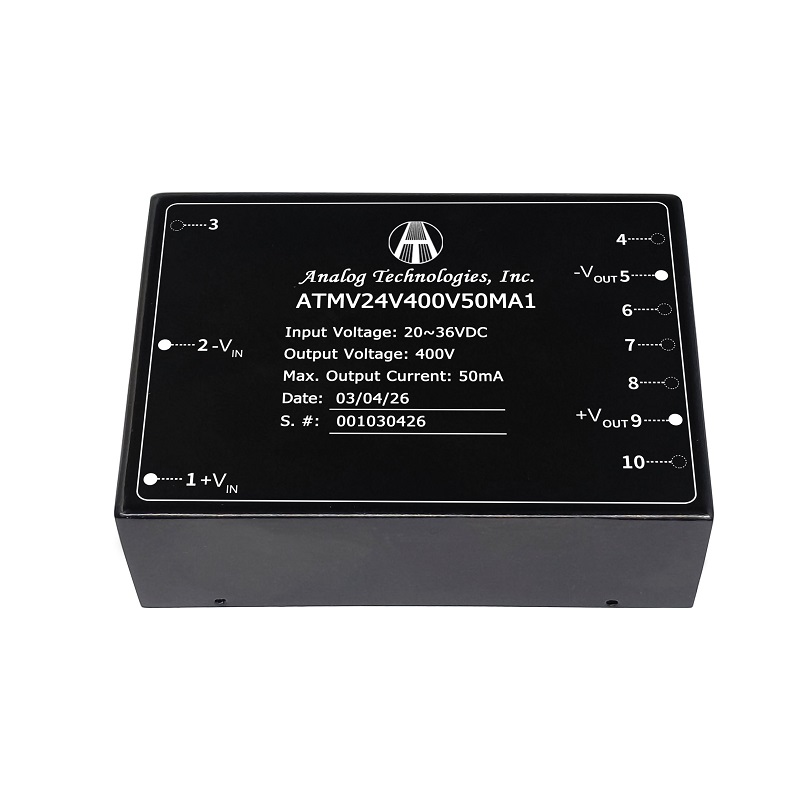

ATMV24V400V50MA1 – 20W Isolated DC-DC Power Module, 20V–36V Input, 400V Output, 50mA, 1500VDC Isolation
$242.00
The ATMV24V400V50MA1 is a 20W isolated DC-DC power module that converts a 20V–36V DC input into a regulated 400V output with up to 50mA output current. It features 1500VDC input-to-output isolation, automatic-recovery short-circuit protection, ±1% output ripple, and a wide input voltage range, housed in a full aluminum, industry-standard DIP package for complete shielding. It is widely used in sustaining ion pumps, spectral analysis, electrophoresis, particle accelerators, capillary electrophoresis, piezo devices, photomultiplier tubes, and avalanche photodiodes.
- Input Voltage: 20V to 36V
- Output Voltage: 400V
- Max. Output Current: 50mA
- Efficiency: 80% @ VIN=24V, VOUT=400V, IOUT=50mA
- Output Ripple: ±1% @20MHz
- Switching Frequency: 125 kHz
- Isolation Voltage: 1500VDC
- Operating Temperature: −40°C to +85°C
- Dimensions: 72.0 × 40.0 × 24.0 mm
- Weight: 120 g
- Package: Industry Standard DIP, Full Aluminum Housing, RoHS Compliant
Available on backorder
| 1~9 | $242.00 each |
| 10~49 | $237.00 each |
| 50~99 | $232.00 each |
| >=100 | $227.00 each |
Additional information
| Weight | 0.5 lbs |
|---|
