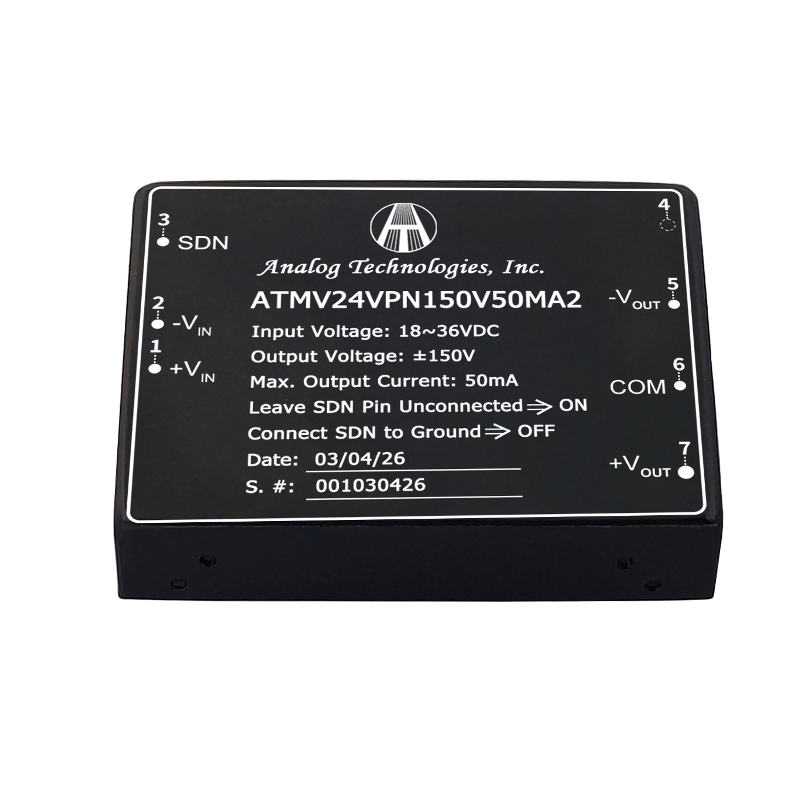

ATMV24VPN150V50MA2 – 15W Isolated DC-DC Power Module, 18V–36V Input, ±150V Dual Output, ±50mA, 1500VDC Isolation
$149.00
The ATMV24VPN150V50MA2 is a 15W isolated DC-DC power module that converts an 18V–36V DC input into a regulated ±150V dual output with up to ±50mA output current. It features 1500VDC input-to-output isolation, automatic-recovery short-circuit protection, ±1% output ripple, and a 2:1 input voltage range, housed in a full aluminum, industry-standard DIP package for complete shielding. It is widely used in sustaining ion pumps, spectral analysis, electrophoresis, particle accelerators, capillary electrophoresis, piezo devices, photomultiplier tubes, and avalanche photodiodes.
- Input Voltage: 18V to 36V
- Output Voltage: ±150V (Dual Output)
- Max. Output Current: ±50mA
- Efficiency: 74% @ VIN=24V, VOUT=±150V, IOUT=±50mA
- Output Ripple: ±1% @20MHz
- Switching Frequency: 125 kHz
- Isolation Voltage: 1500VDC
- Operating Temperature: −40°C to +85°C
- Dimensions: 50.8 × 40.8 × 10.1 mm
- Weight: 50 g
- Package: Industry Standard DIP, Full Aluminum Housing, RoHS Compliant
Available on backorder
| 1~9 | $149.00 each |
| 10~49 | $144.00 each |
| 50~99 | $139.00 each |
| >=100 | $134.00 each |
Additional information
| Weight | 0.5 lbs |
|---|
