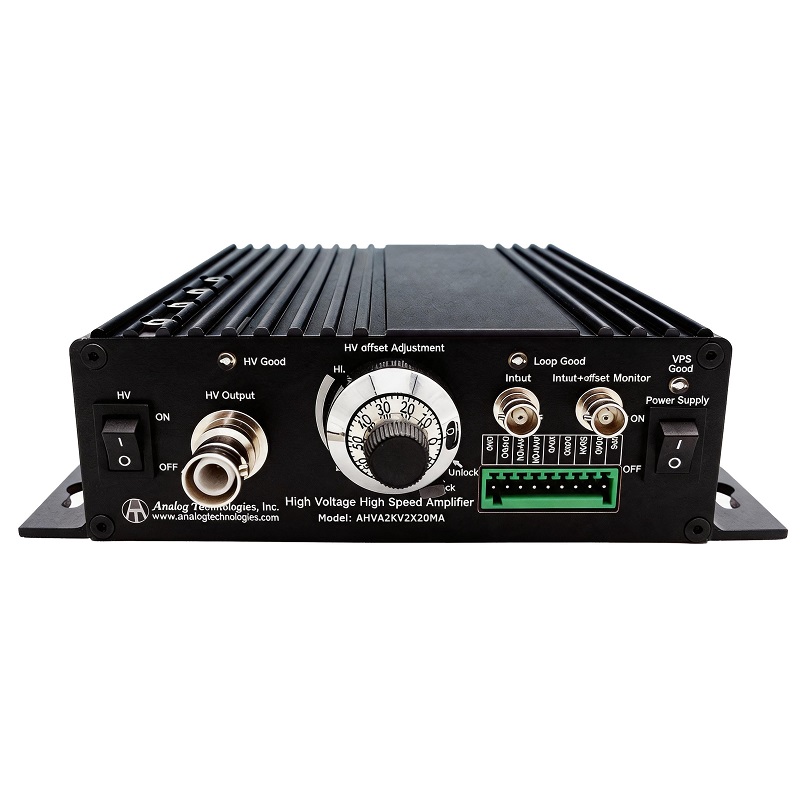

High Voltage Amplifier/ Piezo Driver AHVA2KV2X20MA
$1,240.00
The piezo driver, AHVA2KV2X20MA is an electronic module for amplifying an analog input voltage into a high voltage output. It comes with a high voltage DC-DC converter, which converts the 24V input voltage into a 10V to 2kV output voltage. The analog output voltage can swing almost from 10V to 2kV when it is powered by a 24V power supply. There is an LED light to indicate if the amplifier is working properly. We also have one piezo driver module, which can drive the large Piezo at a high speed rate and it is widely popular among our customers.
FEATURES
Built-in High Voltage Power Supply
High Current Capability: 20mA
High Slew Rate: 100V/µs
Wide Output Voltage Range: VOUT = 10V~2kV@VIN = 24V
Bandwidth: 10kHz
Compact Size: 181.5(L)*149(W)*38.3(H) mm
APPLICATIONS
This series of high voltage amplifiers can be used for driving Piezo and other high voltage loads.
2 in stock (can be backordered)
1~4$1240.00 each
5~8$1190.00 each
9~12$1140.00 each
13~16$1090.00 each
17~20$1040.00 each
>=21$990.00 each
Additional information
| Weight | 1.78 lbs |
|---|
