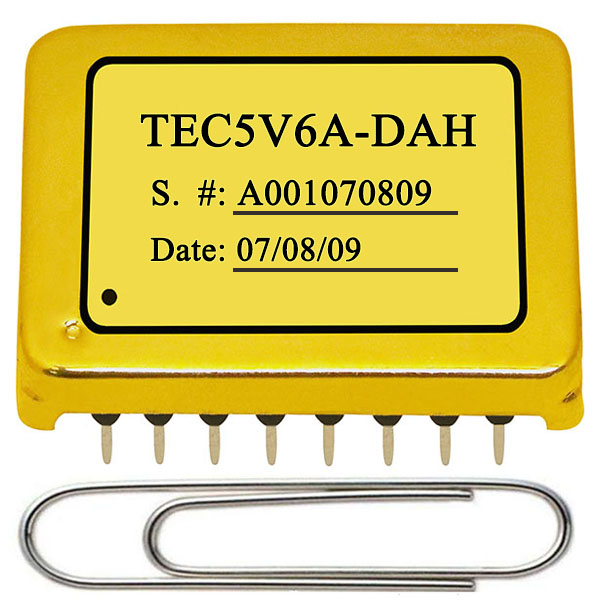

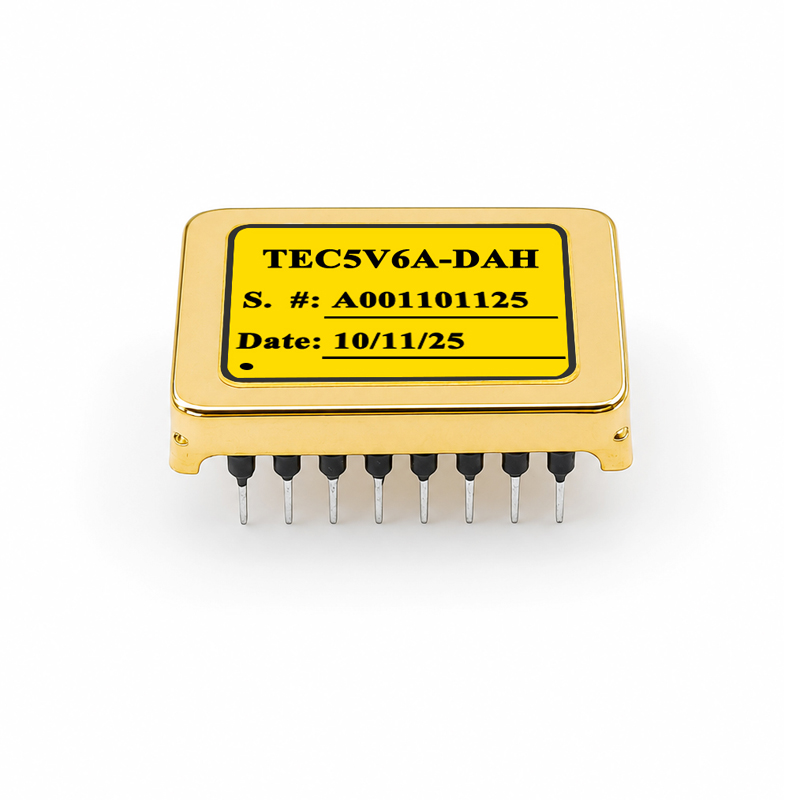

TEC5V6A-DAH

$100.10

The TEC5V6A-DAH is designed for driving TECs with high stability, high energy efficiency, zero EMI, and small package. The module comes with a high stability low noise 3.0V voltage reference for setting the desired object temperature by using a POT or a DAC. In addition, it has a maximum current and voltage of 6A and 4.7V respectively, and a power supply of 4.75V to 6V (specify 5V when ordering). The module is packed in DIP package and fits the RoHS compliance well.

DATASHEET

Notice: Match the Qty Range with the Qty, please

2 in stock (can be backordered)

1~9$100.10 each

10~49$95.70 each

50~199$91.30 each

200~499$86.90 each

>=500$82.50 each

Additional information

Weight 0.3 lbs
