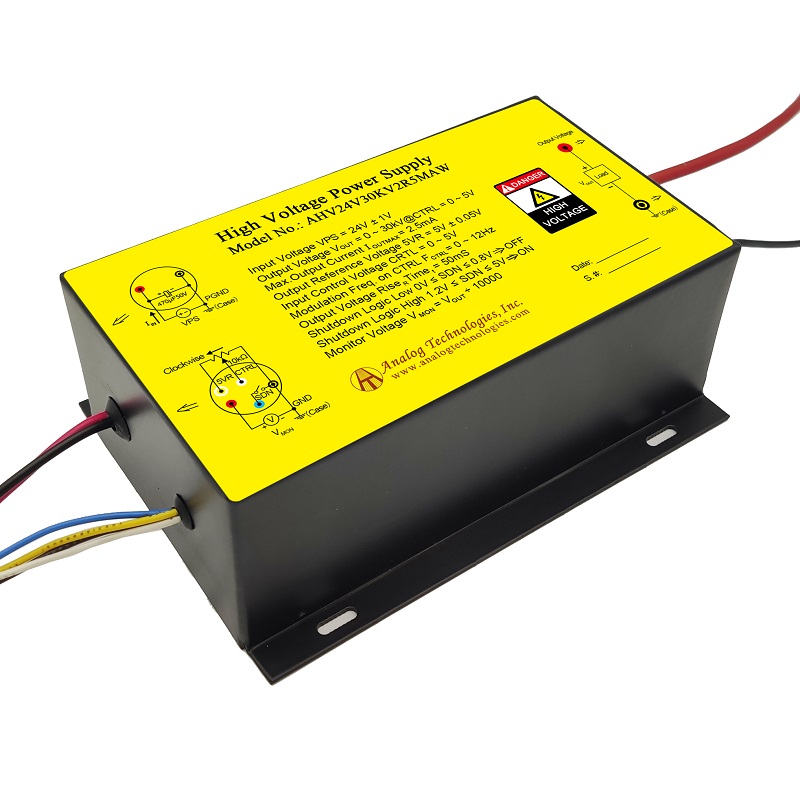

AHV24V30KV2R5MAW DC-DC High Voltage Power Supply Module, 24V Input, +30kV, 2.5mA
$799.00
AHV24V30KV2R5MAW is a 24V input DC-DC high voltage power supply module that delivers a positive output of up to +30kV at 2.5mA, providing approximately 75W of high-voltage power in a compact metal-enclosed package. The output voltage is linearly adjustable from 0 to +30kV through a 0–5V analog control signal, and an analog monitor output (0–3V) is provided for real-time output voltage feedback. With its built-in 5V reference, electronic shutdown control, and over-current protection, this module is well suited for applications such as X-ray tube high voltage sources, mass spectrometry, electrostatic precipitators, ion sources, particle accelerators, electrospinning, DC reactive magnetron sputtering, electron beam evaporation, photomultiplier tube biasing, and other high-power scientific and industrial high-voltage applications requiring greater output current than standard 1mA modules.
- Output Voltage: 0 to +30kV (positive polarity)
- Max. Output Current: 2.5mA
- Output Power: ~75W maximum
- Input Voltage: 24V ± 1V DC
- Output Voltage Control: 0 to 5V analog input (full-span linear modulation)
- Monitor Output: 0 to 3V analog (real-time output voltage feedback)
- Reference Voltage: 5V ± 0.05V (for external potentiometer use)
- Full Load Efficiency: ≥75%
- Temperature Coefficient: ≤0.1 %/°C
- Protection: Over-current protection, electronic shutdown (SDN) control
- Construction: Sealed metal enclosure (low EMI, good heat sinking)
- Operating Temperature: −10°C to +55°C
- Connection: Wire leads (W type)
4 in stock (can be backordered)
1~9$799.00 each
10~49$789.00 each
50~99$779.00 each
>=100$769.00 each
Additional information
| Weight | 3 lbs |
|---|
