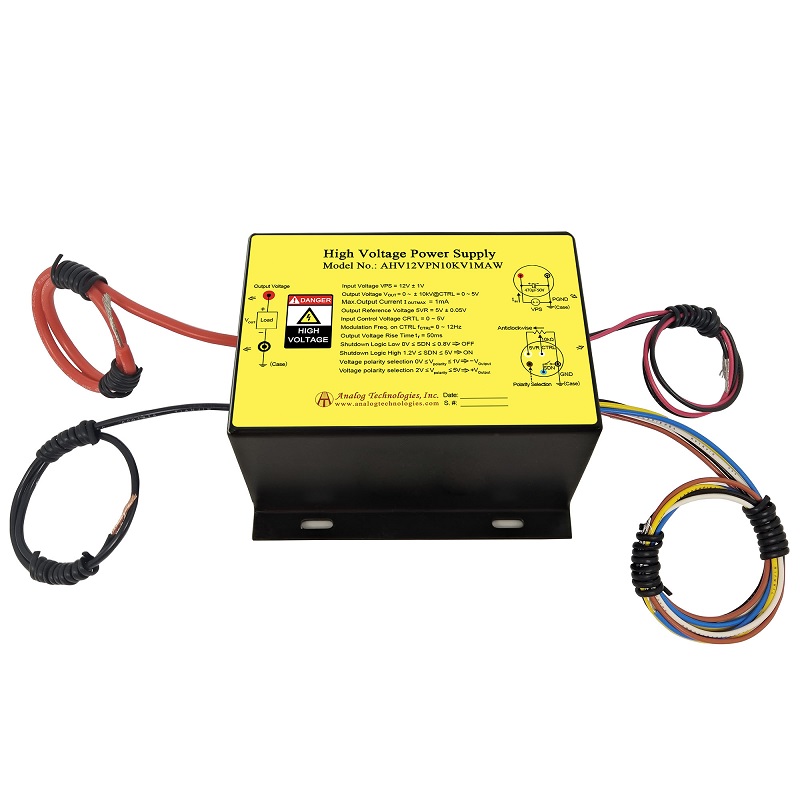

AHV12VPN10KV1MAW

AHV12VPN10KV1MAW is a compact and reliable high-voltage isolated DC-DC power module designed to convert a 12V DC input into a stable 10,000V output with up to 1mA output current. Built for precision high-voltage applications, this module features high input-to-output isolation, efficient voltage conversion, low output ripple, and robust short-circuit protection, making it ideal for scientific, industrial, and laboratory equipment requiring dependable high-voltage DC power.

This 10kV isolated DC-DC converter is housed in a full aluminum enclosure for complete shielding and improved durability, while the compact package ensures convenient integration into various systems. With a wide -40°C to +85°C operating temperature range, the module is suitable for demanding environments where stable performance, compact size, and long service life are essential. For engineers seeking a high-voltage DC-DC power module, 10kV DC power supply module, or isolated high-voltage converter, the AHV12VPN10KV1MAW offers a practical and efficient solution.

Key Features:

• High-Voltage DC-DC Power Module: Efficiently converts 12V DC input to 10,000V DC output in a compact design.
• Stable 10kV Output: Provides a regulated 10,000V DC output with up to 1mA maximum output current.
• High Efficiency: Optimized for minimal power loss and reliable high-voltage conversion.
• Low Ripple Performance: Maintains low output ripple suitable for precision applications.
• High Isolation: Input-to-output isolation enhances safety and system reliability.
• Built-In Protection: Features automatic short-circuit recovery for robust operation.
• Compact Shielded Design: Full aluminum housing provides EMI shielding and mechanical durability.
• Wide Operating Temperature Range: Operates from -40°C to +85°C for industrial and laboratory applications.
• Easy Integration: Compact form factor allows convenient installation into various systems.

Typical Applications: Ion pumps, photomultiplier tubes (PMT), avalanche photodiodes (APD), mass spectrometry, electrophoresis, electrostatic devices, high-voltage research, and other systems requiring a stable, compact 10kV high-voltage DC power module.

DATASHEET
