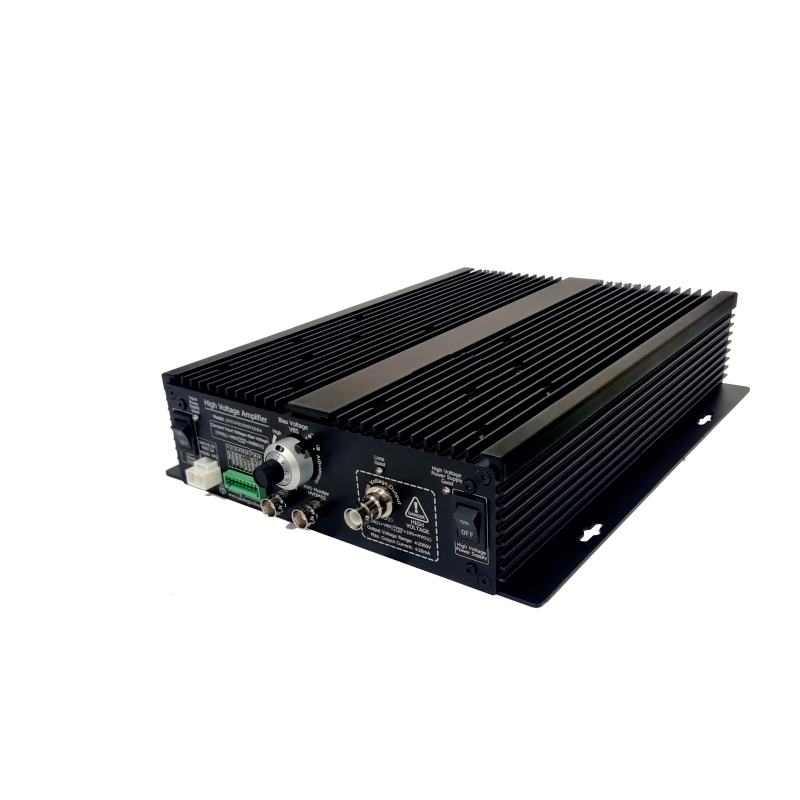

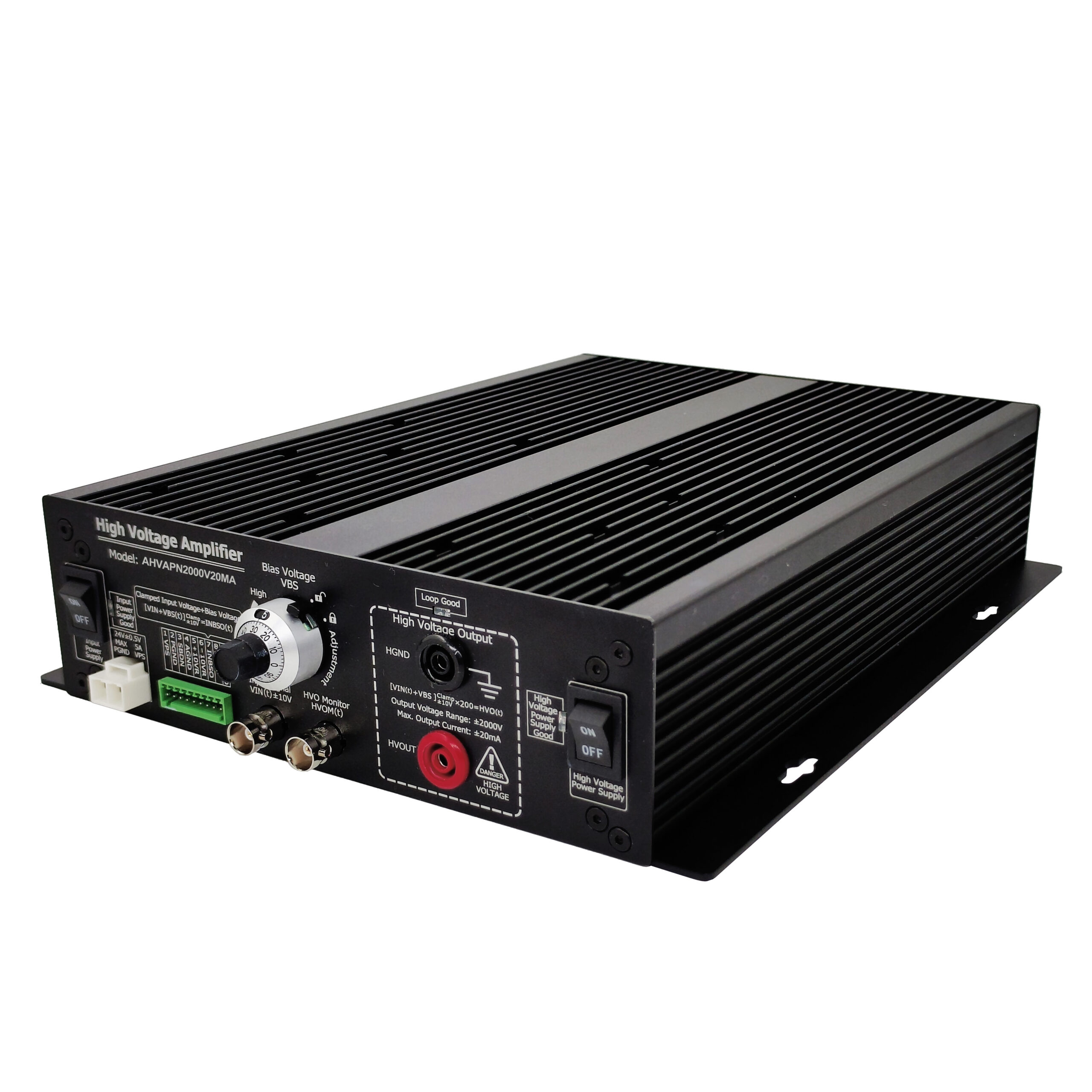

High Voltage Amplifier/Piezo Driver AHVAPN2000V20MA
$1,999.00
APPLICATIONS
This high voltage amplifier can be used for driving highvoltage loads, including: piezoelectric transducers,mass spectrometers, electrostatic precipitators,electrophoresis experiments, high voltage storagecapacitors, etc.
FEATURES
Built-in High Voltage Power Supply
Compact Size: 9.15(L)×9.05(W)×2.4(H) inch232.5(L)×230(W)×61(H) mm
Bi-directional Output: ±2000V
High Current Capability: Up to 20mA
High Slew Rate: 2000V/µs@open load540V/µs@250pF load
Input Signal Voltage Range: ±10V
Adjustable Bias Voltage Range: −10V~10V
Combined Control Voltage Range*: −10V~10V
Bandwidth: 15kHz @ Load=100pF
10kHz @ Load=250pF
8kHz @ Load=500pF
3kHz @ Load=1nF
*: Input Signal + Bias voltage = Combined Control Voltage
Available on backorder
1~4$1999.00 each
5~8$1949.00 each
9~12$1899.00 each
13~16$1849.00 each
17~20$1799.00 each
>=21$1749.00 each
Additional information
| Weight | 10 lbs |
|---|
