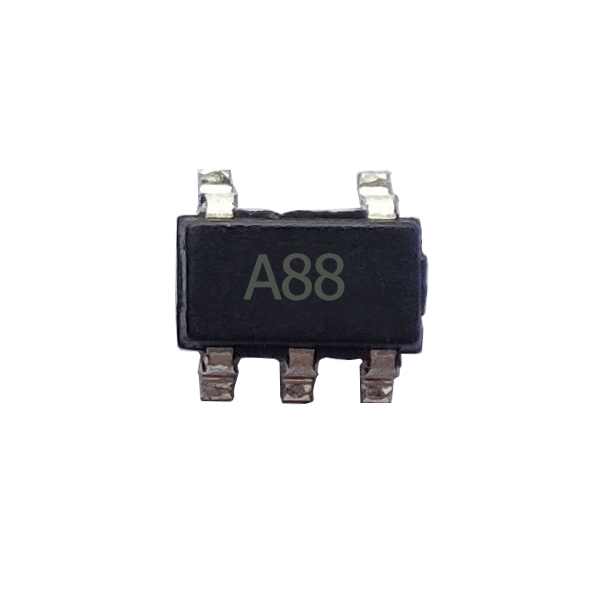

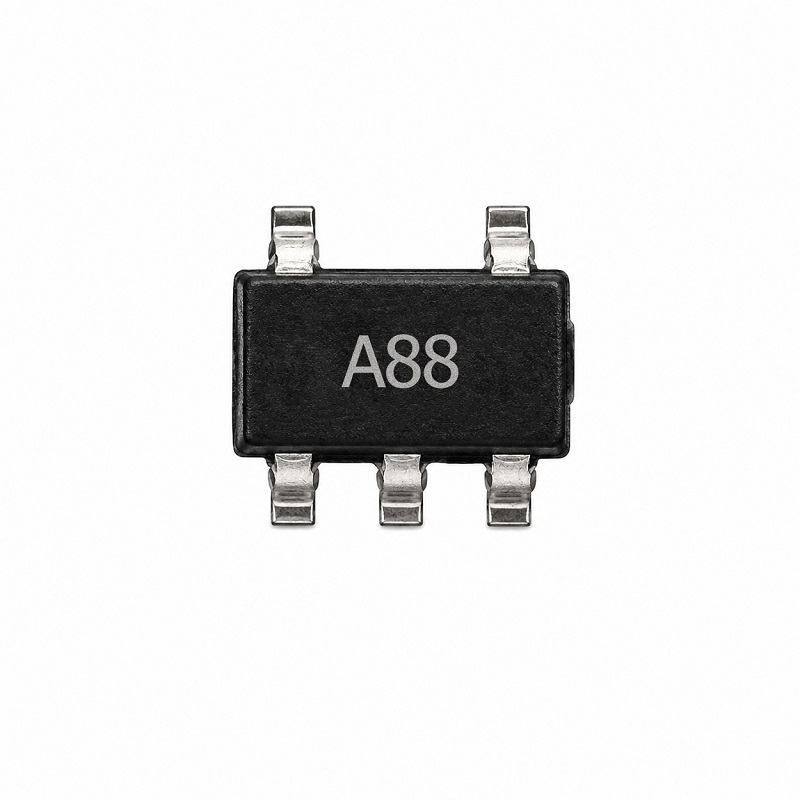

36V 12MHz Zero Drift Op Amps AT1881
$1.89
Product Overview
The AT188X series amplifiers are newest high supply voltage amplifiers with 15µV low offset, low noise and stable high frequency response.
They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 12MHz bandwidth, 12V/µs slew rate and low distortion while drawing only 2000µA of quiescent current per amplifier.
The input common-mode voltage range extends to VEE, and the outputs swing rail-to-rail.
The AT188X has over-temperature protection feature to guarantee the chip safe.
The output of AT188X will enter high impendence when die temperature reach around 170°C and will recover the function when the die temperature down to around 150°C.
The product has very small temperature coefficient of power which is helpful for temperature sensitive application.
Specifications
Low Offset Voltage: 15µV
Low Noise
Stable High Frequency Response
Bandwidth: 12MHz
Slew Rate: 12V/µs
Low Distortion
Quiescent Current: 2000µA per amplifier
Input Common-Mode Voltage Range: Extends to VEE
Output Swing: Rail-to-Rail
Over-Temperature Protection: High impedance at ~170°C, recovers at ~150°C
Small Temperature Coefficient of Power
MOQ
MOQ: 5
Why Choose AT188X?
Proprietary and patented design techniques for superior AC performance
Excellent combination of low offset, low noise, and wide bandwidth
Rail-to-rail output and wide input range for versatile applications
Built-in over-temperature protection for device safety
Minimal temperature coefficient suitable for temperature-sensitive designs
Download Datasheet
Available on backorder
5~9 $1.89 each
10~49 $1.84 each
50~99 $1.79 each
100~499 $1.74 each
500~999 $1.69 each
>=1000 $1.64 each
Additional information
| Weight | 0.3 lbs |
|---|
