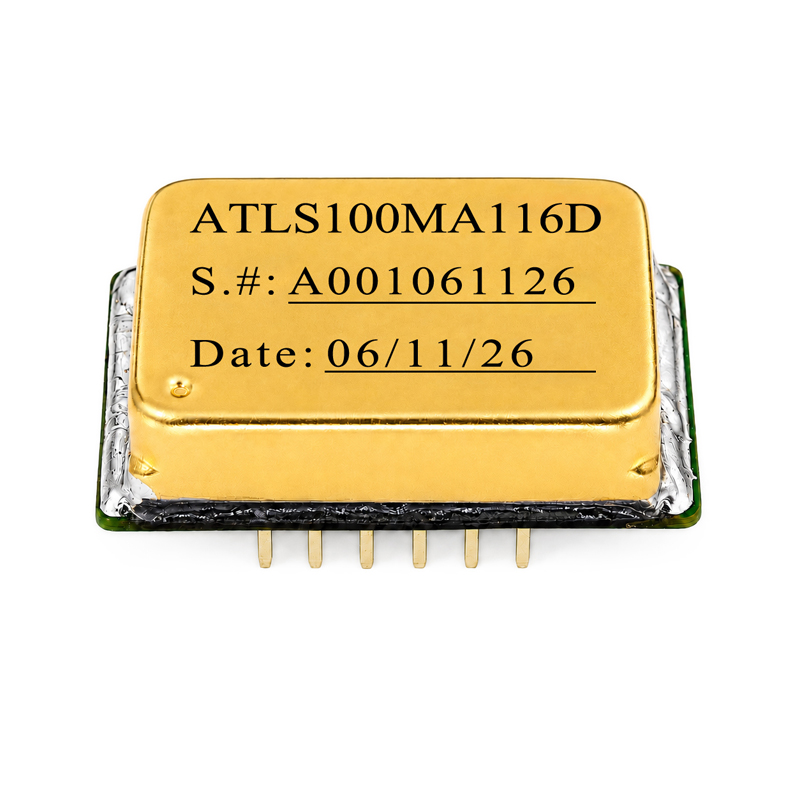

High Voltage Low Noise Laser Controller ATLS100MA116D

$97.90

The ATLS100MA116D is an electronic module designed for driving diode lasers with up to 100mA low noise current. The output voltage is 1.5V to 14V when powered by a 16V power supply.
When the maximum power consumed by the controller is maintained to <1W, it does not require a heat sink to operate.

The controller has temperature compensation network so that the output current maintains the same even as the controller temperature rises. In case the controller temperature exceeds a preset limit, 120°C, the controller will be shut down by itself to prevent the controller from being damaged by the over heat.

DATASHEET

Available on backorder

1~9$ 97.90 each

10~49$ 94.60 each

50~199$ 90.20 each

200~499$ 84.70 each

>=500$ 78.10 each

Additional information

Weight 0.3 lbs
