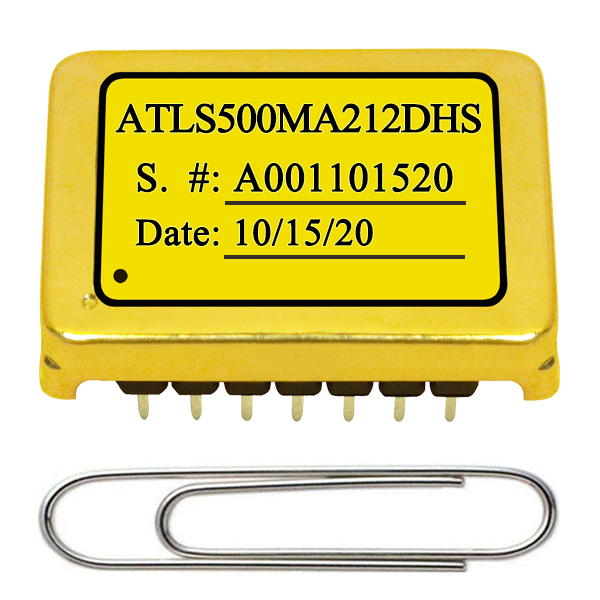

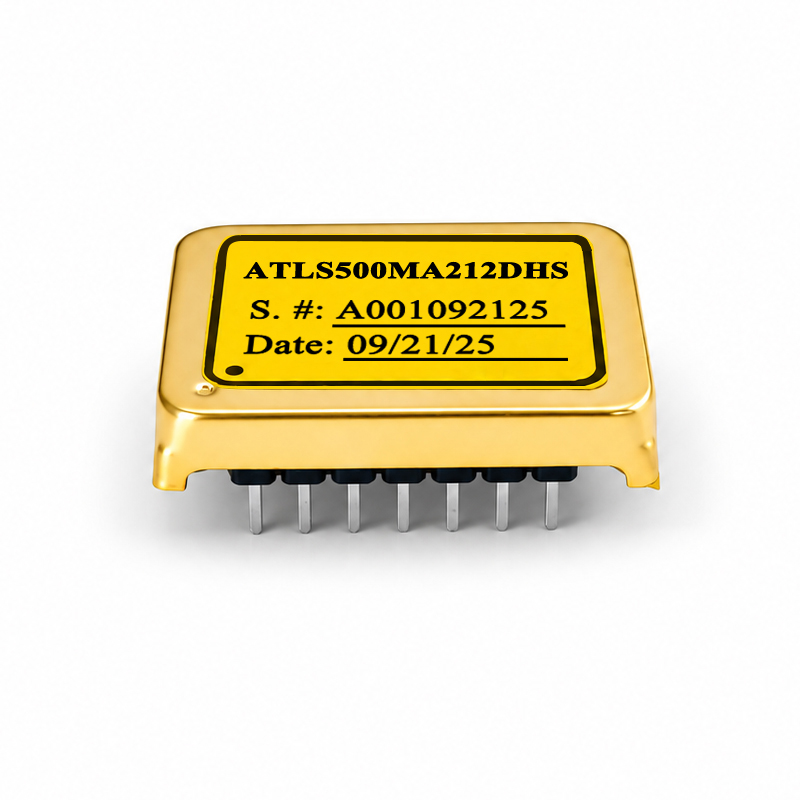

ATLS500MA212DHS

$79.00

 Power Supply Voltage VPS Range: 4.5V 15V
 Full Swing Output Voltage: 0.2VVPS to 0.8VVPS (input voltage)
 Maximum Output Current: 500mA
Higher Speed than ATLS500MA212D
 High Efficiency: ≥90% – no heat sink is needed
 (IOUT=500mA @ VLDA=11V&VVPS=15V)
 Wide Modulation Bandwidth: DC  20kHz
 Dual Independent Current Set Ports
 Direct Digital Modulation Control
 Three Control States: Shutdown, Standby and Operation

DATASHEET

Available on backorder

1~9$79.00 each

10~49$76.00 each

50~199$72.00 each

200~499$69.00 each

>=500$64.00 each

Additional information

Weight 0.3 lbs
