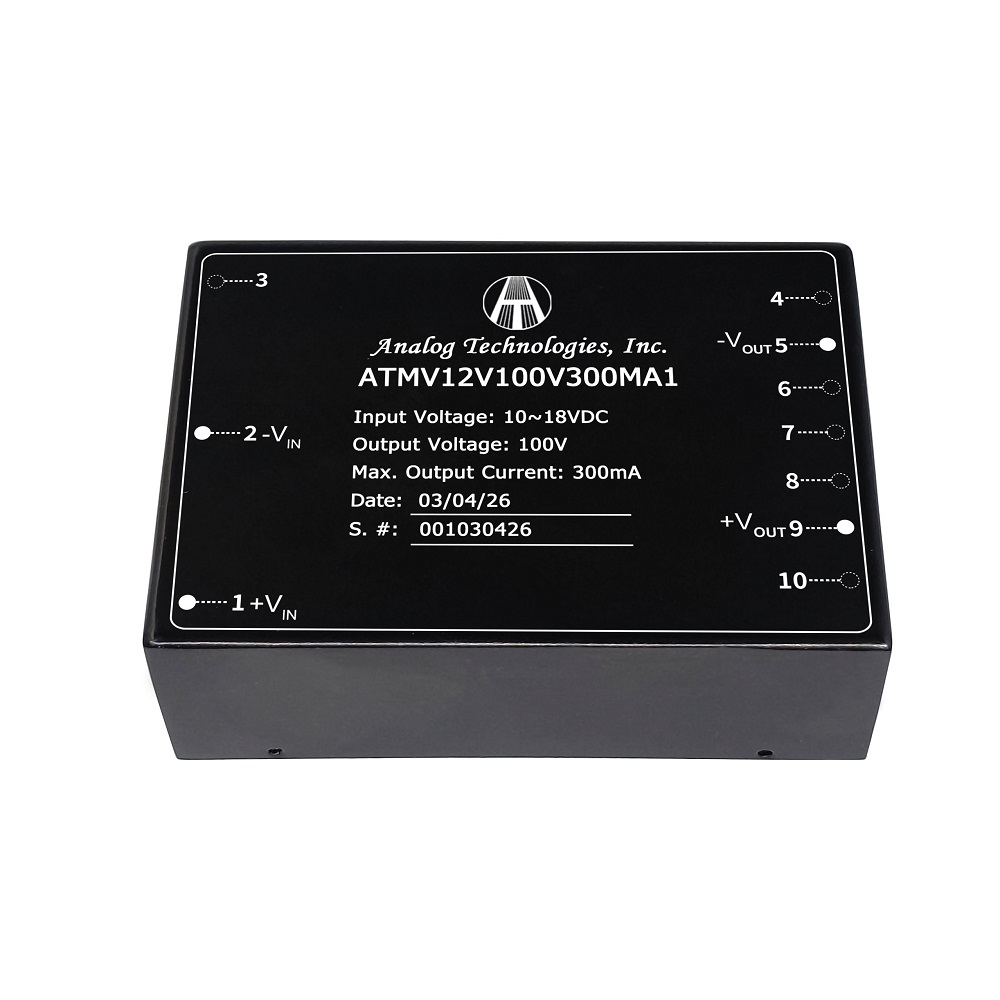

ATMV12V100V300MA1 30 W Isolated DC-DC Module, 10–18 V Input, 100 V, 300 mA
$299.00
ATMV12V100V300MA1 is a 30 W isolated DC-DC power module that converts a 10 V to 18 V DC input into a regulated 100 V DC output for compact medium-voltage bias and drive applications, including APD bias circuits, electrostatic biasing, and compact test instrumentation.
Quick Specs
- Output Power: 30 W
- Input Voltage: 10 V to 18 V DC
- Output Voltage: 100 V DC
- Max. Output Current: 300 mA
- Typical Efficiency: 80%
- Isolation Voltage: 1500 VDC
- Dimensions: 72 × 40 × 24 mm
Available on backorder
| 1~9 | $299.00 each |
| 10~49 | $294.00 each |
| 50~99 | $289.00 each |
| >=100 | $284.00 each |
Additional information
| Weight | 0.4 lbs |
|---|
