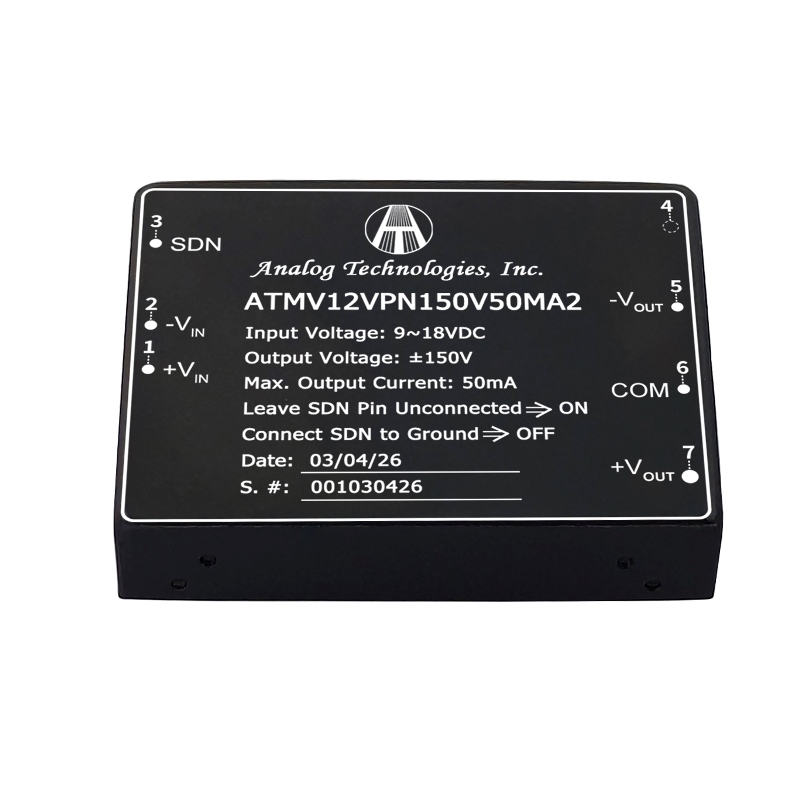

15W Isolated DC-DC Power Module ATMV12VPN150V50MA2
$149.00
Features:
- Wide Input Power Voltage Range: 10V to 18V
- Output Voltage: ±150V
- Max. Output Current: ±50mA
- High Efficiency: 74% @VIN = 12V & VOUT = ±150V & IOUT = ±50mA
- Output Ripple Voltage: ≤1% @20MHz
- Isolation Voltage: 1500VDC
- Output Short-Circuit Protection: Automatic Recovery
- Full Aluminum Housing for Complete Shielding
- Industry Standard DIP Package
- Operating Temperature Range: -40°C to +85°C
- 100 % Lead (Pb)-free and RoHS Compliant
Applications:
This power module, ATMV12VPN150V50MA2, is designed for achieving DC-DC conversion from low voltage to high voltage as a power supply source. It is widely used in scientific research and other fields including:
Sustaining Ion Pumps
Spectral Analysis
Electrophoresis
Particle Accelerator
Capillary Electrophoresis
Piezo Devices
Photo Multiplier Tubes
Avalanche Photo Diodes
DESCRIPTION This Power Module is a medium voltage, isolated DC-DC converter with 2:1 input voltage range. With a wide operating temperature range, built in short-circuit protection, providing this unit with high reliability and long life.
Available on backorder
| 1~9 | $149.00 each |
| 10~49 | $144.00 each |
| 50~99 | $139.00 each |
| >=100 | $134.00 each |
Additional information
| Weight | 0.5 lbs |
|---|
