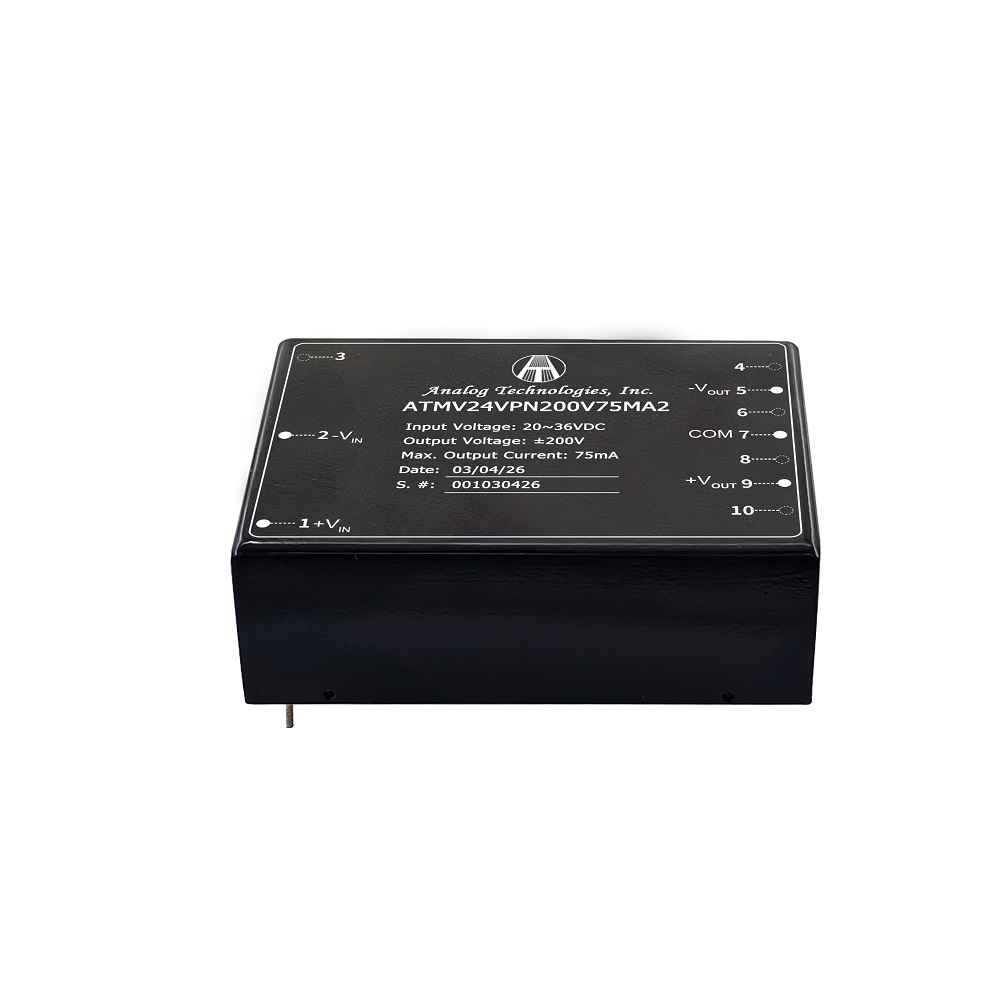

ATMV24VPN200V75MA2 30W Isolated DC-DC Power Module, 24V Input, ±200V Output, ±75mA
$319.00
ATMV24VPN200V75MA2 is a 30W isolated DC-DC power module that converts a 20V–36V DC input into a regulated dual ±200V output at up to ±75mA, housed in a fully shielded aluminum DIP package. With 1500VDC isolation, ~82% efficiency, ±1% output ripple, and automatic-recovery short-circuit protection, it provides stable bipolar medium-voltage DC power for applications such as sustaining ion pumps, spectral analysis, electrophoresis, particle accelerators, piezo device drivers, and photomultiplier tube / avalanche photodiode biasing.
- Output Voltage: ±200V DC (dual / bipolar)
- Max. Output Current: ±75mA
- Output Power: 30W maximum
- Input Voltage: 20V–36V DC (24V typical)
- Typical Efficiency: 82%
- Output Ripple: ±1% (20MHz bandwidth)
- Isolation Voltage: 1500VDC (input-to-output)
- Protection: Automatic-recovery short-circuit protection
- Construction: Aluminum-shielded industry-standard DIP package
- Operating Temperature: −40°C to +85°C
Available on backorder
| 1~9 | $319.00 each |
| 10~49 | $314.00 each |
| 50~99 | $309.00 each |
| >=100 | $304.00 each |
Additional information
| Weight | 0.4 lbs |
|---|
