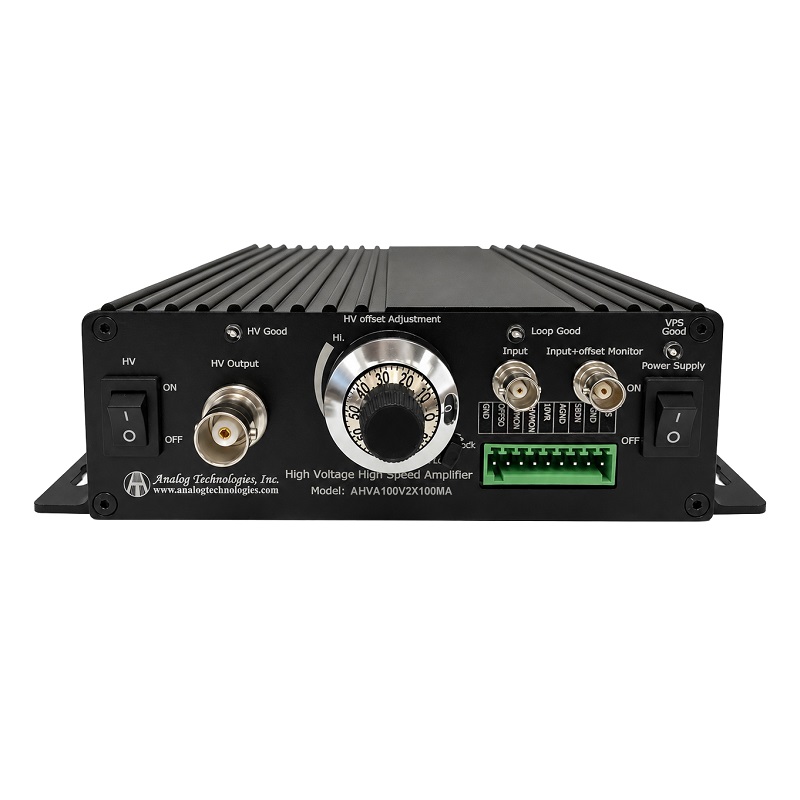

AHVA100V2X100MA – High Voltage Amplifier / Piezo Driver, 10–100V Output, 100mA, 100V/µs Slew Rate
$380.00
The AHVA100V2X100MA is an electronic module for amplifying an analog input voltage into a high voltage output. It comes with a built-in high voltage DC-DC converter that converts a 24V input into a 10V to 100V output, delivering up to 100mA output current at a 100V/µs slew rate. Three on-board LEDs indicate whether the amplifier is working properly.
Main Features
- Built-in High Voltage DC-DC Converter
- Wide Output Voltage Range: VOUT = 10V to 100V @ VIN = 24V
- High Current Capability: up to 100mA
- High Slew Rate: 100V/µs
- Bandwidth: up to 10kHz
- Offset Voltage Range: 10V
- Maximum Input Power: 100W
- SBDN pin control with three modes: Off / Standby / On
- Compact Size: 176.5 (L) × 147.0 (W) × 41.2 (H) mm
- Weight: 1.0 kg (2.2 lb)
Applications
High voltage amplifications for driving piezos and other high voltage loads.
Available on backorder
1~4$380.00 each
5~8$370.00 each
9~12$360.00 each
13~16$350.00 each
17~20$340.00 each
>=21$330.00 each
Additional information
| Weight | 2.21 lbs |
|---|
