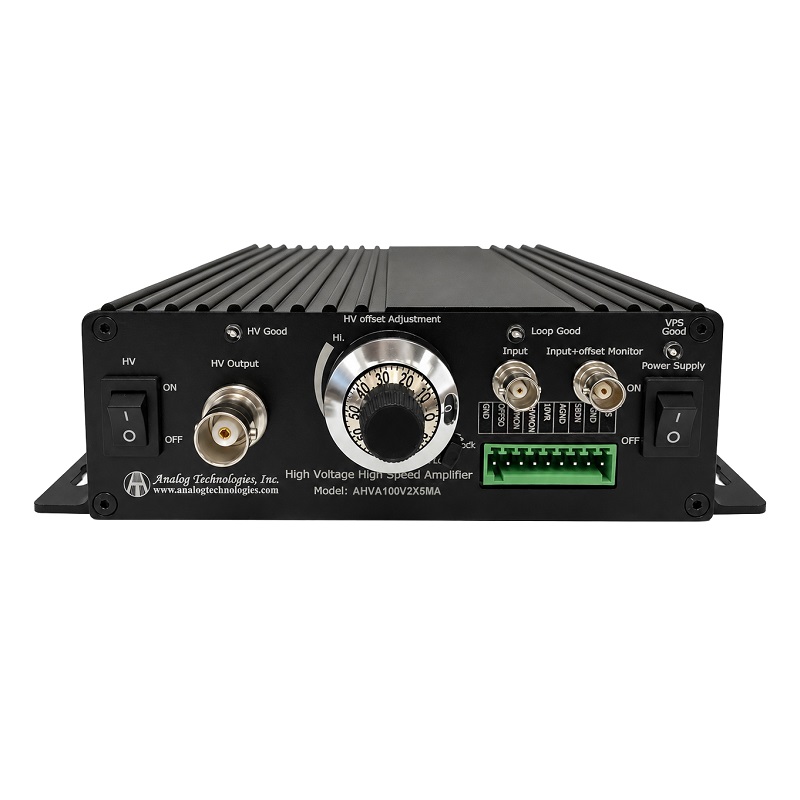

High Voltage Amplifier/Piezo Driver AHVA100V2X5MA

$340.00

The AHVA100V2X5MA is an electronic module for amplifying an analog input voltage into a high voltage output. It comes with a high voltage DC-DC converter, which converts the 24V input voltage into a 10V to 100V output voltage. The analog output voltage can swing almost from 10V to 100V when it is powered by a 24V power supply. There is three LEDs indicating if the amplifier works properly.

MAIN FEATURES

Built-in High Voltage Power Supply

High Current Capability: 5mA

High Slew Rate: 100V/µs

Wide Output Voltage Range: VOUT = 10V~100V@VIN = 24V

Bandwidth: Up to 10kHz

Compact Size: 181.5(L)*149(W)*38.3(H) mm

APPLICATIONS

This series of high voltage amplifier can be used for driving Piezo and other high voltage loads.

DATASHEET

Available on backorder

1~4$340.00 each

5~8$330.00 each

9~12$320.00 each

13~16$310.00 each

17~20$300.00 each

>=21$290.00 each

Additional information

Weight 2.21 lbs
